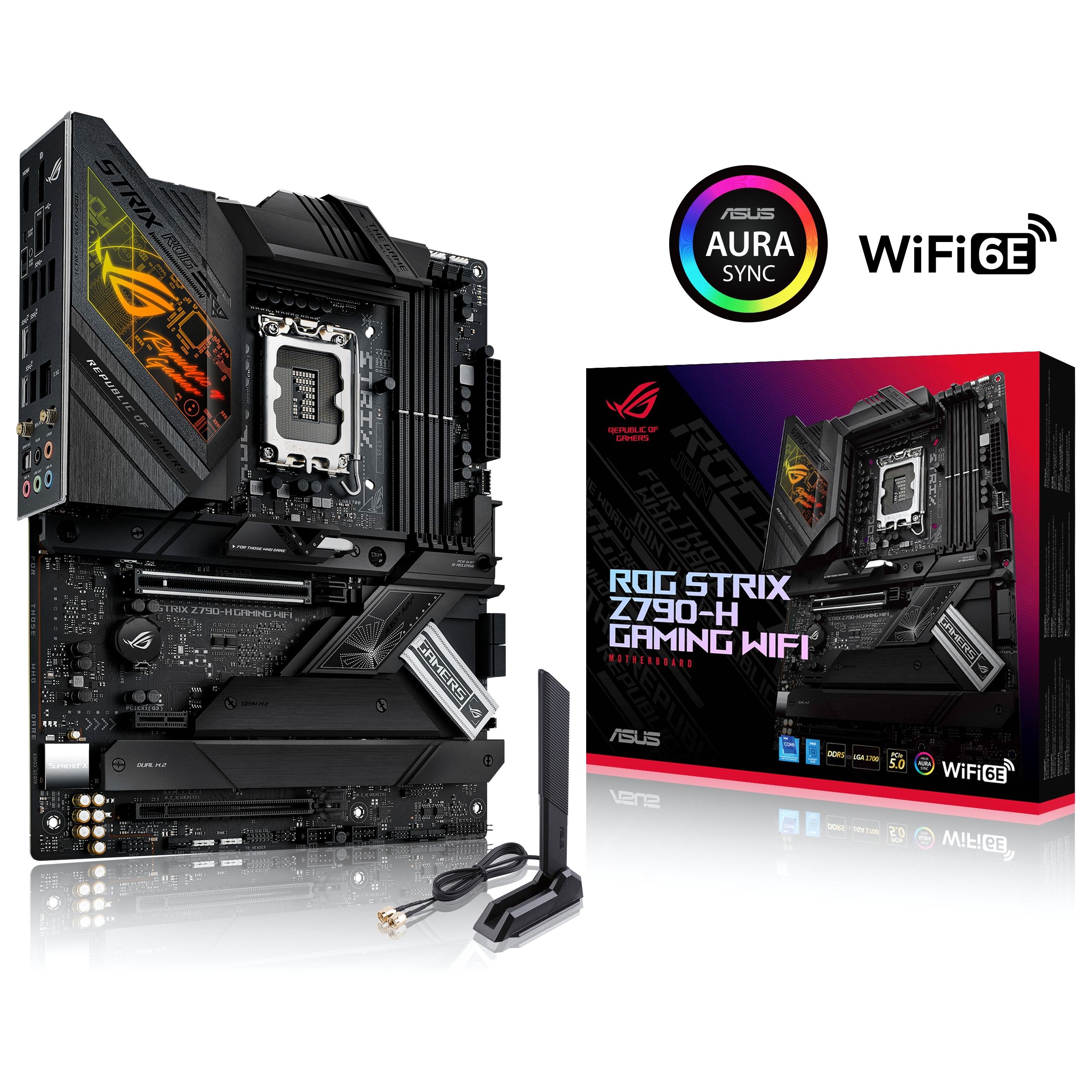

ASUS ROG STRIX Z790-H GAMING WIFI LGA 1700 ATX Motherboard
SKU: 39506489
Rs 96,990
Authorised Dealer
Out of stock
This product is currently sold out.
No worries! Enter your email, and we'll let you know as soon as it's back in stock.
ASUS ROG STRIX Z790-H GAMING WIFI LGA 1700 ATX Motherboard
SKU: 39506489
Rs 96,990
Authorised Dealer
Out of stock
This product is currently sold out.
No worries! Enter your email, and we'll let you know as soon as it's back in stock.
Payment Methods:
Overview
Strike stealthily with the powerfully potent ASUS ROG Strix Z790-H. Thick black heatsinks keep VRM temperatures under wraps, allowing Intel® 13th Gen processors room for higher boosts. Four M.2 slots are similarly outfitted, and the top slot comes with a combo sink to sneak in extra cooling. PCIe 5.0 support lies in wait for next-gen graphics cards, and cutting-edge WiFi 6E and USB 3.2 Gen 2×2 fully flesh out connectivity.
- Intel LGA 1700 socket: Ready for 13th Gen Intel Core, and 12th Gen Intel Core, Pentium Gold, and Celeron processors
- Robust Power Solution: 16 + 1 power stages rated for 80A, dual ProCool II power connectors, high-quality alloy chokes, and durable capacitors are all leveraged to support the latest multi-core processors
- Optimized VRM Thermals: Massive heatsinks connected by an L-shaped heatpipe, bridged to the VRM with high-conductivity thermal pads, and with an integrated I/O cover
- Ample M.2 Support: Four PCIe 4.0 M.2 slots all with heatsinks, and the topmost one also sports a Combo-sink extension and backplate for additional cooling
- Abundant Connectivity: USB 3.2 Gen 2×2 Type-C rear I/O port and additional front-panel connector, seven USB 3.2 Gen 2 and Gen 1 ports, PCIe 5.0 x16 SafeSlot, HDMI 2.1, and DisplayPort 1.4
- High-Performance Networking: On-board WiFi 6E (802.11ax) and Intel 2.5Gb Ethernet with ASUS LANGuard
- Intelligent Control: ASUS-exclusive AI Overclocking, AI Cooling II, AI Networking, and Two-Way AI Noise Cancelation to simplify setup and improve performance
- DIY-Friendly Design: PCIe Slot Q-Release, M.2 Q-Latch, pre-mounted I/O shield, Q-LED, BIOS FlashBack button, BIOS FlashBack LED, and Clear CMOS button
Overview
Strike stealthily with the powerfully potent ASUS ROG Strix Z790-H. Thick black heatsinks keep VRM temperatures under wraps, allowing Intel® 13th Gen processors room for higher boosts. Four M.2 slots are similarly outfitted, and the top slot comes with a combo sink to sneak in extra cooling. PCIe 5.0 support lies in wait for next-gen graphics cards, and cutting-edge WiFi 6E and USB 3.2 Gen 2×2 fully flesh out connectivity.
- Intel LGA 1700 socket: Ready for 13th Gen Intel Core, and 12th Gen Intel Core, Pentium Gold, and Celeron processors
- Robust Power Solution: 16 + 1 power stages rated for 80A, dual ProCool II power connectors, high-quality alloy chokes, and durable capacitors are all leveraged to support the latest multi-core processors
- Optimized VRM Thermals: Massive heatsinks connected by an L-shaped heatpipe, bridged to the VRM with high-conductivity thermal pads, and with an integrated I/O cover
- Ample M.2 Support: Four PCIe 4.0 M.2 slots all with heatsinks, and the topmost one also sports a Combo-sink extension and backplate for additional cooling
- Abundant Connectivity: USB 3.2 Gen 2×2 Type-C rear I/O port and additional front-panel connector, seven USB 3.2 Gen 2 and Gen 1 ports, PCIe 5.0 x16 SafeSlot, HDMI 2.1, and DisplayPort 1.4
- High-Performance Networking: On-board WiFi 6E (802.11ax) and Intel 2.5Gb Ethernet with ASUS LANGuard
- Intelligent Control: ASUS-exclusive AI Overclocking, AI Cooling II, AI Networking, and Two-Way AI Noise Cancelation to simplify setup and improve performance
- DIY-Friendly Design: PCIe Slot Q-Release, M.2 Q-Latch, pre-mounted I/O shield, Q-LED, BIOS FlashBack button, BIOS FlashBack LED, and Clear CMOS button
| CPU | Intel Socket LGA1700 for 13th Gen Intel Core & 12th Gen Intel Core, Pentium Gold and Celeron Processor Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
| Chipset | Intel Z790 Chipset |
| Memory | 4 x DIMM, Max. 192GB, DDR5 7800+(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem II |
| Graphics |
Graphics specifications may vary between CPU types. Supports max. 8K@60Hz as specified in DisplayPort 1.4. Supports 4K@60Hz as specified in HDMI 2.1. VGA resolution support depends on processors' or graphic cards' resolution. |
| Expansion Slots | Intel 13th & 12th Gen Processors 1 x PCIe 5.0 x16 slotIntel Z790 Chipset 1 x PCIe 4.0 x16 slot (supports x4 or x4/x4 mode) 1 x PCIe 3.0 x1 slot |
| Storage | Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports
Intel 13th & 12th Gen Processors Intel Z790 Chipset |
| Ethernet | 1 x Intel 2.5Gb Ethernet ASUS LANGuard |
| Wireless & Bluetooth | Wi-Fi 6E 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band Bluetooth® v5.3WiFi 6E 6GHz regulatory may vary between countries.The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications. |
| USB | Rear USB (Total 10 ports)
Front USB (Total 7 ports)
|
| Audio | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC S1220A
- Impedance sense for front and rear headphone outputs Audio Features - SupremeFX Shielding Technology |
| Back Panel I/O Ports |
|
| Internal I/O Connectors | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 5 x 4-pin Chassis Fan headersPower related 1 x 24-pin Main Power connector 2 x 8-pin +12V Power connectorsStorage related 4 x M.2 slots (Key M) 4 x SATA 6Gb/s portsUSB 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 portsMiscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x CPU Over Voltage jumper 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thermal Sensor header 1 x Thunderbolt™ header |
| Special Features | Extreme Engine Digi+ - 5K Black Metallic CapacitorsASUS Q-Design - M.2 Q-Latch - PCIe Slot Q-Release - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-SlotASUS Thermal Solution - M.2 heatsink backplate - M.2 heatsink - VRM heatsink designASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - Clear CMOS button - CPU Socket lever protector - ProCool II - Pre-mounted I/O shield - SafeSlot - SafeDIMMAura Sync - Aura RGB header - Addressable Gen 2 headers |
| Software Features | ROG Exclusive Software - GameFirst VI - ROG CPU-Z - Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion - Sonic Radar III - DTS® Sound UnboundASUS Exclusive Software Armoury Crate - AIDA64 Extreme (60 days free trial) - Aura Creator- Aura Sync - Fan Xpert 4 (with AI Cooling II) - Power Saving - Two-Way AI Noise Cancellation AI Suite 3 - Easy Optimization with AI Overclocking - TPU - DIGI+ VRM - Turbo app - PC Cleaner - System Information MyAsus Norton 360 for Gamers WinRARUEFI BIOS AI Overclocking Guide ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode FlexKey MemTest86 |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Accessories | Cables 2 x SATA 6Gb/s cablesAdditional Cooling Kit 1 x Thermal pad for M.2Miscellaneous 1 x ASUS Wi-Fi moving antennas 1 x Cable ties package 1 x M.2 backplate Q-Latch package 1 x M.2 Q-Latch package 1 x ROG key chain 1 x ROG Strix stickers 1 x ROG Strix thank you card 2 x M.2 Rubber Packages 1 x M.2 backplate RubberPackageDocumentation 1 x User guide |
| Operating System | Windows 11, Windows 10 64-bit |
| Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
