ASUS TUF GAMING B650M-PLUS WIFI AMD Motherboard

SKU: 39438464
Model: TUF GAMING B650M-PLUS WIFI
(Be The First One To Review)

Rs 54,990

(Be The First One To Review)
ASUS

Authorised Dealer

Out of stock

This product is currently sold out.

No worries! Enter your email, and we'll let you know as soon as it's back in stock.

  • Need help? Ask our Experts
asus-1
asus-3
asu4
asus-2
asus-1
asus-3
asu4
asus-2

ASUS TUF GAMING B650M-PLUS WIFI AMD Motherboard

SKU: 39438464
Model: TUF GAMING B650M-PLUS WIFI
(Be The First One To Review)

Rs 54,990

(Be The First One To Review)
ASUS

Authorised Dealer

Out of stock

This product is currently sold out.

No worries! Enter your email, and we'll let you know as soon as it's back in stock.

Payment Methods:

Payment methods 1.jpg
  • Need help? Ask our Experts

Overview

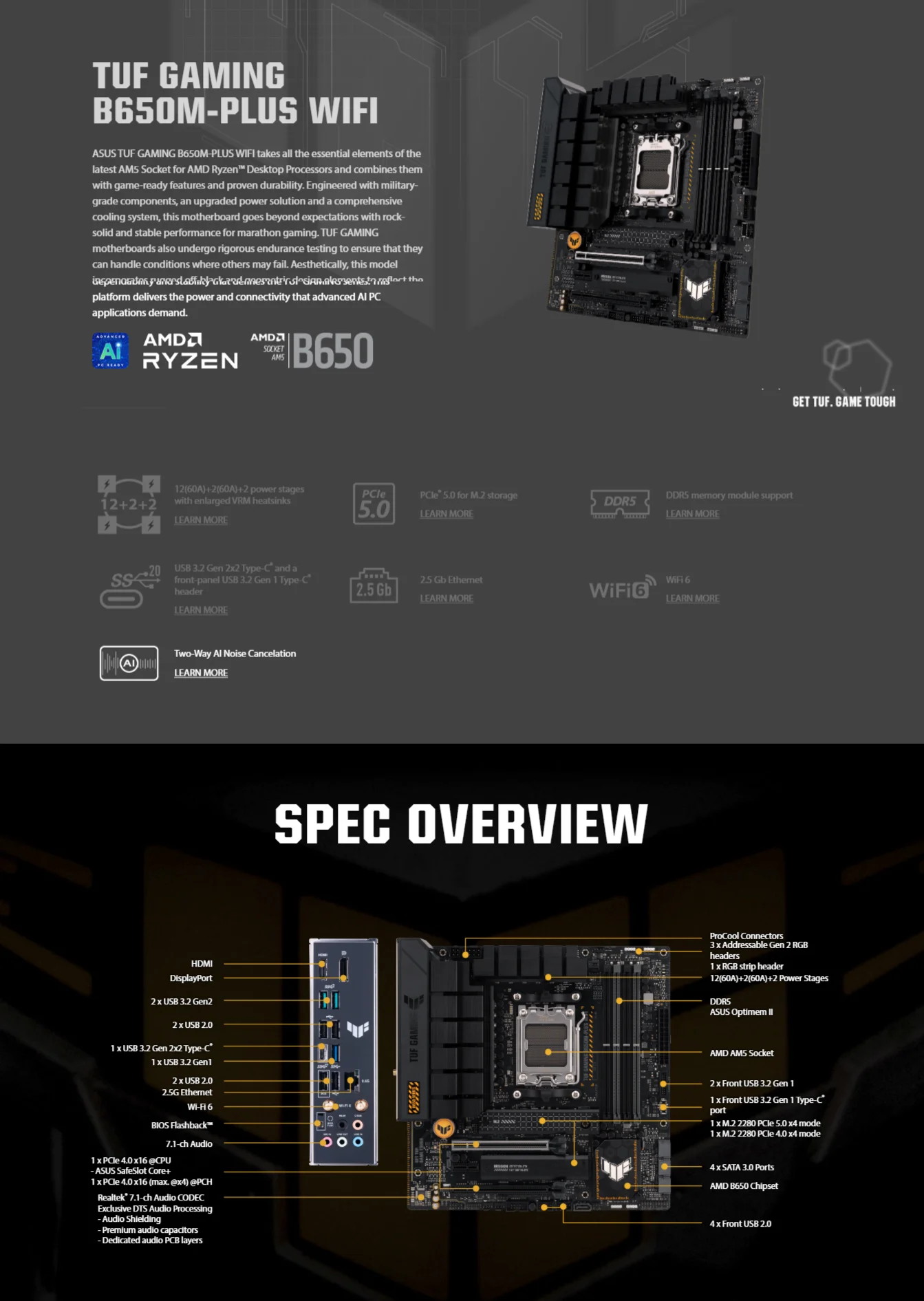

ASUS TUF GAMING B650M-PLUS WIFI takes all the essential elements of the latest AMD Ryzen 7000-series processors and combines them with game-ready features and proven durability.
  • 12+2 power stages (rated 60A) with enlarged VRM heatsinks
  • PCIe® 5.0 for M.2 storage
  • DDR5 memory module support
  • 2.5 Gb Ethernet – WiFi 6

Overview

ASUS TUF GAMING B650M-PLUS WIFI takes all the essential elements of the latest AMD Ryzen 7000-series processors and combines them with game-ready features and proven durability.
  • 12+2 power stages (rated 60A) with enlarged VRM heatsinks
  • PCIe® 5.0 for M.2 storage
  • DDR5 memory module support
  • 2.5 Gb Ethernet – WiFi 6
Show more

Model:

  • TUF GAMING B650M-PLUS WIFI

Processor Support:

  • CPU Socket: AMD Socket AM5 for AMD Ryzenâ„¢ 9000, 8000, and 7000 Series Desktop Processors
  • Refer to the ASUS website for specific CPU support.

Chipset:

  • AMD B650 Chipset

Memory:

  • 4 x DIMM slots, supporting up to 192GB of DDR5 memory.
  • Memory speeds: DDR5 5200-7600+(OC) and higher, depending on the configuration.
  • Supports Dual Channel Memory Architecture and AMD EXPOâ„¢ for overclocking.
  • OptiMem II technology for enhanced memory performance.
  • Non-ECC, Un-buffered DDR5 Memory with On-Die ECC function.

Graphics:

  • 1 x DisplayPort (supports up to 8K@60Hz via DisplayPort 1.4)
  • 1 x HDMI® port (supports up to 4K@60Hz via HDMI 2.1)

Expansion Slots:

  • 1 x PCIe 4.0 x16 slot (supports x16 mode for Ryzenâ„¢ 9000/7000 Series processors)
  • 1 x PCIe 4.0 x16 slot (supports x8/x4 mode for Ryzenâ„¢ 8000 Series processors)
  • 1 x PCIe 4.0 x1 slot

Storage:

  • 2 x M.2 slots (Key M):
    • M.2_1: PCIe 5.0 x4 mode for Ryzenâ„¢ 9000 & 7000 Series processors
    • M.2_2: PCIe 4.0 x4 mode for Ryzenâ„¢ 9000 & 7000 Series processors, PCIe 4.0 x4/x2 mode for Ryzenâ„¢ 8000 Series processors.
  • 4 x SATA 6Gb/s ports for additional storage.
  • Supports RAID 0/1/10 with RAIDXpert2 Technology (NVMe and SATA RAID).

Networking:

  • Realtek 2.5Gb Ethernet with TUF LANGuard for enhanced protection.

Wireless & Bluetooth:

  • Wi-Fi 6 (802.11 a/b/g/n/ac/ax) supporting 2.4/5GHz frequency bands.
  • Bluetooth v5.2.

USB Ports:

  • Rear I/O (Total 8 ports):
    • 1 x USB 3.2 Gen 2x2 (USB Type-C)
    • 2 x USB 3.2 Gen 2 (USB Type-A)
    • 1 x USB 3.2 Gen 1 (USB Type-A)
    • 4 x USB 2.0 (USB Type-A)
  • Front I/O (Total 7 ports):
    • 1 x USB 3.2 Gen 1 connector (supports USB Type-C)
    • 1 x USB 3.2 Gen 1 header (supports additional 2 USB 3.2 Gen 1 ports)
    • 2 x USB 2.0 headers (supports additional 4 USB 2.0 ports)

Audio:

  • Realtek 7.1 Surround Sound High Definition Audio CODEC:
    • Supports 24-Bit/192 kHz playback.
    • Features: Jack-detection, Multi-streaming, Front Panel Jack-retasking.
    • Premium capacitors and dedicated audio PCB layers.

Back Panel I/O Ports:

  • 1 x USB 3.2 Gen 2x2 (USB Type-C)
  • 2 x USB 3.2 Gen 2 (USB Type-A)
  • 1 x USB 3.2 Gen 1 (USB Type-A)
  • 4 x USB 2.0 (USB Type-A)
  • 1 x DisplayPort
  • 1 x HDMI® port
  • 1 x Wi-Fi Module
  • 1 x Realtek 2.5Gb Ethernet port
  • 5 x Audio jacks
  • 1 x BIOS FlashBackâ„¢ button

Internal I/O Connectors:

  • Cooling: 1 x CPU fan header, 1 x AIO pump header, 3 x chassis fan headers.
  • Power: 1 x 24-pin Main Power, 1 x 8-pin +12V, 1 x 4-pin +12V.
  • Storage: 2 x M.2 slots, 4 x SATA 6Gb/s ports.
  • USB: 1 x USB Gen 1 (supports USB Type-C), 2 x USB 2.0 headers, 1 x USB 3.2 Gen 1 header.

Special Features:

  • TUF PROTECTION: Digital power design (DrMOS), Enhanced DRAM overcurrent protection, ESD Guards, Overvoltage Protection, SafeSlot Core+.
  • ASUS Q-Design: M.2 Q-Latch, Q-DIMM, Q-LED indicators, Q-Slot for easy installation and troubleshooting.
  • ASUS Thermal Solution: M.2 heatsink, VRM heatsink design for cooling.
  • Aura Sync: RGB lighting customization with Aura RGB header and Addressable Gen 2 headers.

Software Features:

  • Armoury Crate: Aura Creator, Fan Xpert 2+, Two-Way AI Noise Cancellation.
  • TUF GAMING CPU-Z, DTS Audio Processing.
  • AI Suite 3: TurboV EVO, DIGI+ VRM, Power Saving, and more.
  • MyAsus, WinRAR, Norton Anti-virus (Free Trial).

BIOS Features:

  • 256Mb Flash ROM, UEFI AMI BIOS.
  • EZ DIY: BIOS FlashBackâ„¢, Clear CMOS, ProCool, SafeDIMM.
  • CrashFree BIOS 3, EZ Flash 3, UEFI BIOS EZ Mode.

Operating System Support:

  • Windows® 10 64-bit, Windows® 11 64-bit.

Form Factor:

  • micro-ATX (9.6 x 9.6 inches / 24.4 cm x 24.4 cm).
