Cooler Master MasterFrame 700 Customizable Open-Air Frame ATX Case

SKU: 39058268
Model: MCF-MF700-KGNN-S00

Rs 48,990

Authorised Dealer

Out of stock

This product is currently sold out.

No worries! Enter your email, and we'll let you know as soon as it's back in stock.

  • Need help? Ask our Experts

Cooler Master MasterFrame 700 Customizable Open-Air Frame ATX Case

SKU: 39058268
Model: MCF-MF700-KGNN-S00

Rs 48,990

Out of stock

This product is currently sold out.

No worries! Enter your email, and we'll let you know as soon as it's back in stock.

Payment Methods:

  • Need help? Ask our Experts

Overview

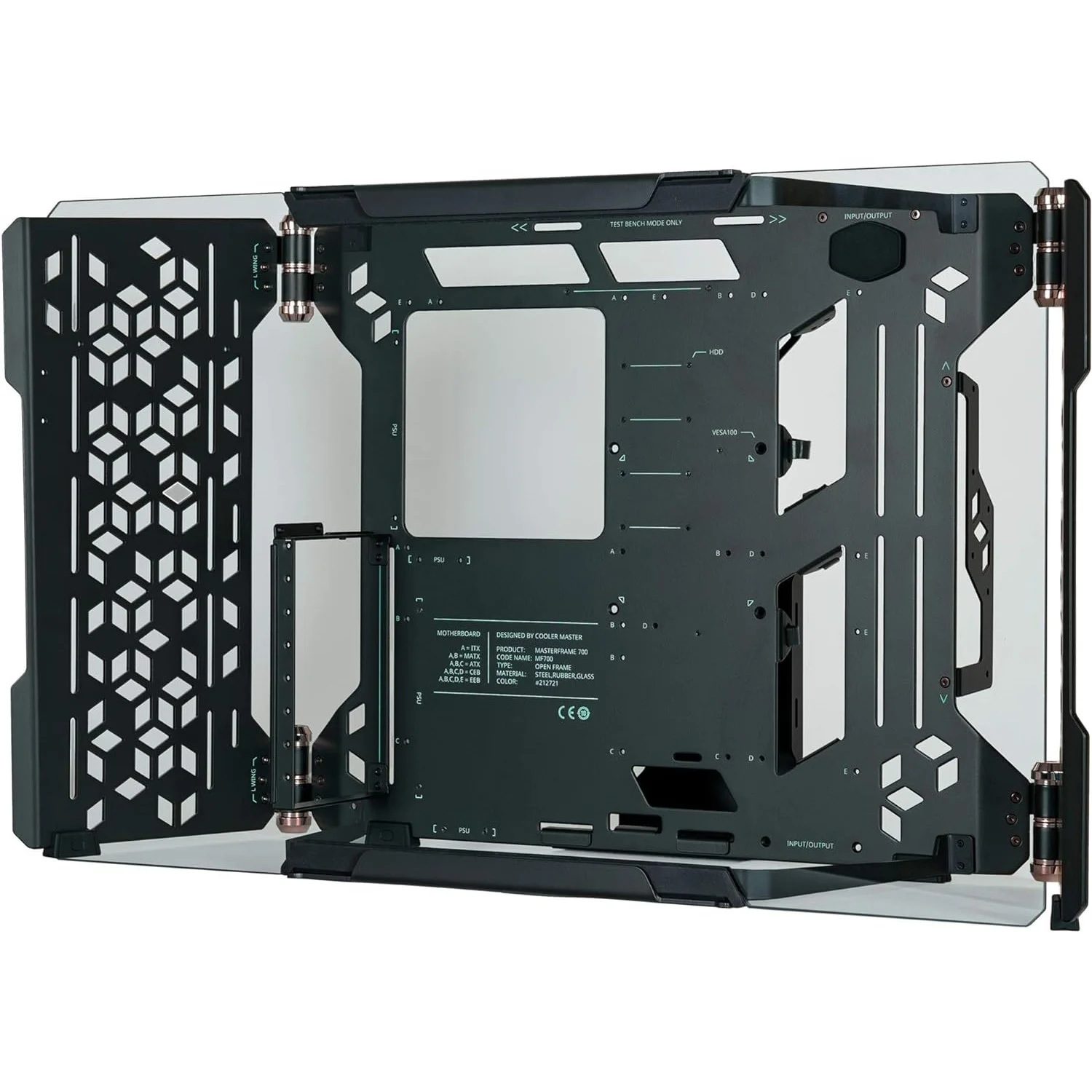

The Cooler Master MasterFrame 700 is an Unique Style Open Air Frame Style Design Chassis With Tempered Glass Side Panels and Vesa Mount Compatibility, Twin Radiator Mount, 3- Parts Frame for Maximum Customization.

  • Premium Variable Friction Hinges: Heavy duty hinges hold the side wings to the mid-frame and allow for smooth repositioning at any angle depending on the user’s needs. Allen keys are included to adjust the tension of the hinges to make it easier to move or allow the side wings to hold heavier parts. This level of flexibility is a key factor for users creating extremely unique water-cooling loops and setups.
  • Open Air Design: The open-air nature of the design provides unrestricted access to fresh air to all components in the system. The optional fan mounts allow to further guide the airflow path to a specific intake/exhaust direction, thus preventing performance-robbing heat recirculation.
  • Un-matched Hardware Support: For its size, MasterFrame 700 sports an unmatched level of hardware compatibility. It is designed to fit any component available, even oversized ones. Users can mount up to SSI-EEB motherboards, multiple power supplies and multiple radiators at the same time and still have room for triple slots GPUs and storage.
  • Extreme Water-Cooling Support: Designed with water-cooling in mind, MasterFrame 700 provides a flexible pump and reservoir mounting location and support for multiple triple-fan radiators.
  • Test Bench Mode: Thanks to its modular design, MasterFrame 700 can lay down horizontally and transform into an ultra-featured premium Test Bench. Cooling and power components are installed out of the way of the motherboard area for interference-free installation of components



Overview

The Cooler Master MasterFrame 700 is an Unique Style Open Air Frame Style Design Chassis With Tempered Glass Side Panels and Vesa Mount Compatibility, Twin Radiator Mount, 3- Parts Frame for Maximum Customization.

  • Premium Variable Friction Hinges: Heavy duty hinges hold the side wings to the mid-frame and allow for smooth repositioning at any angle depending on the user’s needs. Allen keys are included to adjust the tension of the hinges to make it easier to move or allow the side wings to hold heavier parts. This level of flexibility is a key factor for users creating extremely unique water-cooling loops and setups.
  • Open Air Design: The open-air nature of the design provides unrestricted access to fresh air to all components in the system. The optional fan mounts allow to further guide the airflow path to a specific intake/exhaust direction, thus preventing performance-robbing heat recirculation.
  • Un-matched Hardware Support: For its size, MasterFrame 700 sports an unmatched level of hardware compatibility. It is designed to fit any component available, even oversized ones. Users can mount up to SSI-EEB motherboards, multiple power supplies and multiple radiators at the same time and still have room for triple slots GPUs and storage.
  • Extreme Water-Cooling Support: Designed with water-cooling in mind, MasterFrame 700 provides a flexible pump and reservoir mounting location and support for multiple triple-fan radiators.
  • Test Bench Mode: Thanks to its modular design, MasterFrame 700 can lay down horizontally and transform into an ultra-featured premium Test Bench. Cooling and power components are installed out of the way of the motherboard area for interference-free installation of components



cooler master masterframe price in pakistan

  • Series: MasterFrame Series
  • Model Number: MCF-MF700-KGNN-S00
  • Case Type: Full Tower
  • Color: Black
  • Materials: Steel, Tempered Glass

Dimensions

  • Length: 702 mm (27.64 inches)
  • Width: 306 mm (12.05 inches)
  • Height: 410 mm (16.14 inches)

Motherboard Support

  • Supported Form Factors:
    • SSI EEB
    • SSI CEB
    • XL-ATX
    • E-ATX
    • ATX
    • Micro ATX
    • Mini ITX

Cooling Support

  • Fan Support:
    • Right Side: 3x 120mm or 2x 140mm
    • Left Side: 3x 120mm or 2x 140mm
  • Radiator Support:
    • Right Side: Up to 280mm or 360mm
    • Left Side: Up to 280mm or 360mm
    • Top: Up to 360mm or 420mm

Pre-installed Fans

  • Top: None
  • Bottom: None
  • Rear: None
  • Front: None

Drive Bays

  • 5.25" Drive Bays: Not available
  • 2.5" Drive Bays: 7 (3 SSD brackets + 4 PSU cover)
  • 2.5"/3.5" Drive Bays (Combo): Up to 4 (PSU cover)

Expansion Slots

  • Total Expansion Slots: 8

Clearances

  • CPU Cooler Clearance: 158 mm (6.22 inches)
  • PSU Clearance: 210 mm (8.26 inches)
  • GPU Clearance:
    • Maximum: Up to 450 mm (17.71 inches)
    • Recommended for Maximum Compatibility: 310 mm (12.20 inches)

I/O Panel

  • Ports:
    • 2x USB 3.1 Gen 2 Type-A
    • 1x USB 3.2 Gen 2 Type-C
    • 1x 3.5mm Headset Jack (Audio+Mic)

Other Features

  • Power Supply Support: 2x ATX
  • Cable Routing Space: 100 mm
