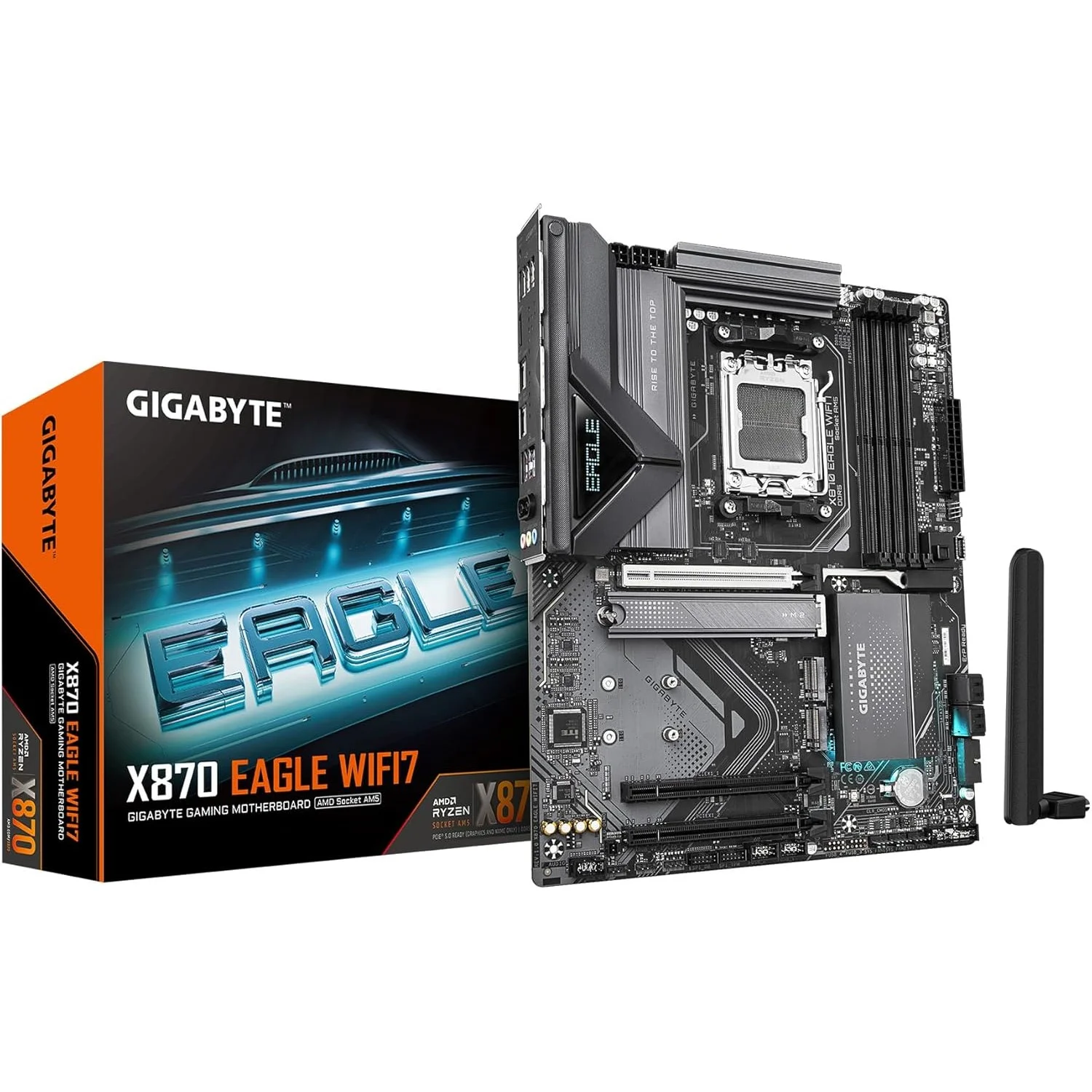

GIGABYTE X870 Eagle WIFI7 AMD AM5 LGA 1718 Motherboard

CPU Support:

• Socket: AMD Socket AM5
• Supported Processors:
  • AMD Ryzen™ 9000 Series
  • AMD Ryzen™ 8000 Series
  • AMD Ryzen™ 7000 Series
• Note: For the latest CPU compatibility, refer to the official GIGABYTE website.

Chipset:

• Chipset: AMD X870

Memory:

• Type: DDR5 memory support (OC supported for multiple speeds)
  • Speed Support (OC): 8200, 8000, 7800, 7600, 7200, 7000, 6800, 6666, 6600, 6400, 6200, 6000, 5600, 5200, 4800, 4400 MT/s
• Capacity:
  • Up to 256 GB (64 GB per DIMM)
• Memory Configuration:
  • Dual Channel architecture
  • Supports non-ECC Un-buffered DIMM (1Rx8/2Rx8/1Rx16)
• Overclocking:
  • Supports AMD EXPO™ and XMP profiles for overclocking

Onboard Graphics:

• AMD Radeon™ Graphics (dependent on CPU support):
  • USB4® Ports (2 x USB Type-C®)
    • Supports USB4 and DisplayPort video outputs (up to 3840x2160 at 240 Hz, HDR, DisplayPort 1.4)
  • HDMI Port:
    • Maximum resolution: 4096x2160 at 60 Hz (HDMI 2.1, HDCP 2.3, HDR)

Audio:

• Realtek® Audio CODEC with:
  • High Definition Audio
  • 2/4/5.1/7.1-channel support (7.1-channel available through audio software)

LAN:

• Realtek® 2.5GbE LAN Chip (2.5 Gbps/1 Gbps/100 Mbps)

Wireless Communication:

• Wi-Fi 7:
  • MediaTek Wi-Fi 7 MT7925 or Realtek Wi-Fi 7 RTL8922AE
  • Supports 802.11a/b/g/n/ac/ax/be, operating on 2.4/5/6 GHz bands
  • Bluetooth 5.4 support
  • Supports 11be 160MHz wireless standard
• Wi-Fi 7 requires Windows 11 SV3 for full functionality.

Expansion Slots:

• 1 x PCIe x16 Slot (PCIEX16) (integrated in the CPU):
  • Supports PCIe 5.0 x16 for Ryzen™ 9000/7000 Series CPUs
  • Supports PCIe 4.0 (x8 mode) for Ryzen™ 8000 Phoenix 1 CPUs, and PCIe 4.0 (x4 mode) for Phoenix 2 CPUs
• Chipset PCIe:
  • 2 x PCIe x16 slots (PCIEX1_1/2) supporting PCIe 3.0 at x1 mode

Storage Interface:

• M.2 Connectors:
  • 1 x M.2 (M2A_CPU): Integrated in the CPU, supporting PCIe 5.0 x4/x2 SSDs for Ryzen™ 9000/7000 CPUs
  • 1 x M.2 (M2C_SB): Integrated in the chipset, supporting PCIe 4.0 x2 SSDs
  • 1 x M.2 (M2B_SB): Integrated in the chipset, supports PCIe 4.0 x4/x2 SSDs (shares bandwidth with M2C_SB)
• SATA:
  • 4 x SATA 6Gb/s connectors
  • RAID support for NVMe SSDs and SATA storage (RAID 0, 1, 5, 10)

USB Ports:

• CPU + ASMedia USB4® Controller:
  • 2 x USB4® USB Type-C® ports (on the back panel)
• Other Ports:
  • 1 x USB 3.2 Gen 2 Type-A (Red, on the back panel)
  • 1 x USB 3.2 Gen 1 (on the back panel)
  • 4 x USB 2.0/1.1 (on the back panel)
  • Internal USB headers (for Type-C, Type-A, USB 2.0, 3.2 Gen 1)

Internal I/O Connectors:

• Power Connectors: 24-pin ATX, 8-pin and 4-pin ATX 12V
• Fan Headers: 1 CPU fan, 1 CPU fan/water cooling pump, 4 system fan headers
• RGB Headers: 3 x addressable RGB Gen2, 1 x RGB LED strip
• Storage & USB Headers: SATA, M.2 connectors, USB 3.2 Gen 2x2, USB 3.2 Gen 1, USB 2.0/1.1 headers

Back Panel Connectors:

• 1 x Q-Flash Plus button
• 2 x Antenna connectors (2T2R)
• 1 x HDMI port
• 2 x USB4® USB Type-C® ports
• 1 x USB 3.2 Gen 2 Type-A port (Red)
• 3 x USB 3.2 Gen 1 ports
• 4 x USB 2.0/1.1 ports
• 1 x RJ-45 LAN port
• 3 x Audio jacks

I/O Controller:

• iTE® I/O Controller Chip

H/W Monitoring:

• Voltage, temperature, and fan speed detection
• Water cooling flow rate detection and fan fail warnings
• Fan speed control (depending on installed fans/pumps)

BIOS:

• 256 Mbit flash, AMI UEFI BIOS
• Features like PnP, ACPI, SM BIOS, and Q-Flash

Unique Features:

• Support for GIGABYTE Control Center (GCC)
• Q-Flash, Q-Flash Plus, and Smart Backup features
• Bundled Software includes Norton® Internet Security and LAN bandwidth management

Operating System:

• Supports Windows 11 64-bit

Form Factor:

• ATX (30.5 cm x 24.4 cm)
