Overview

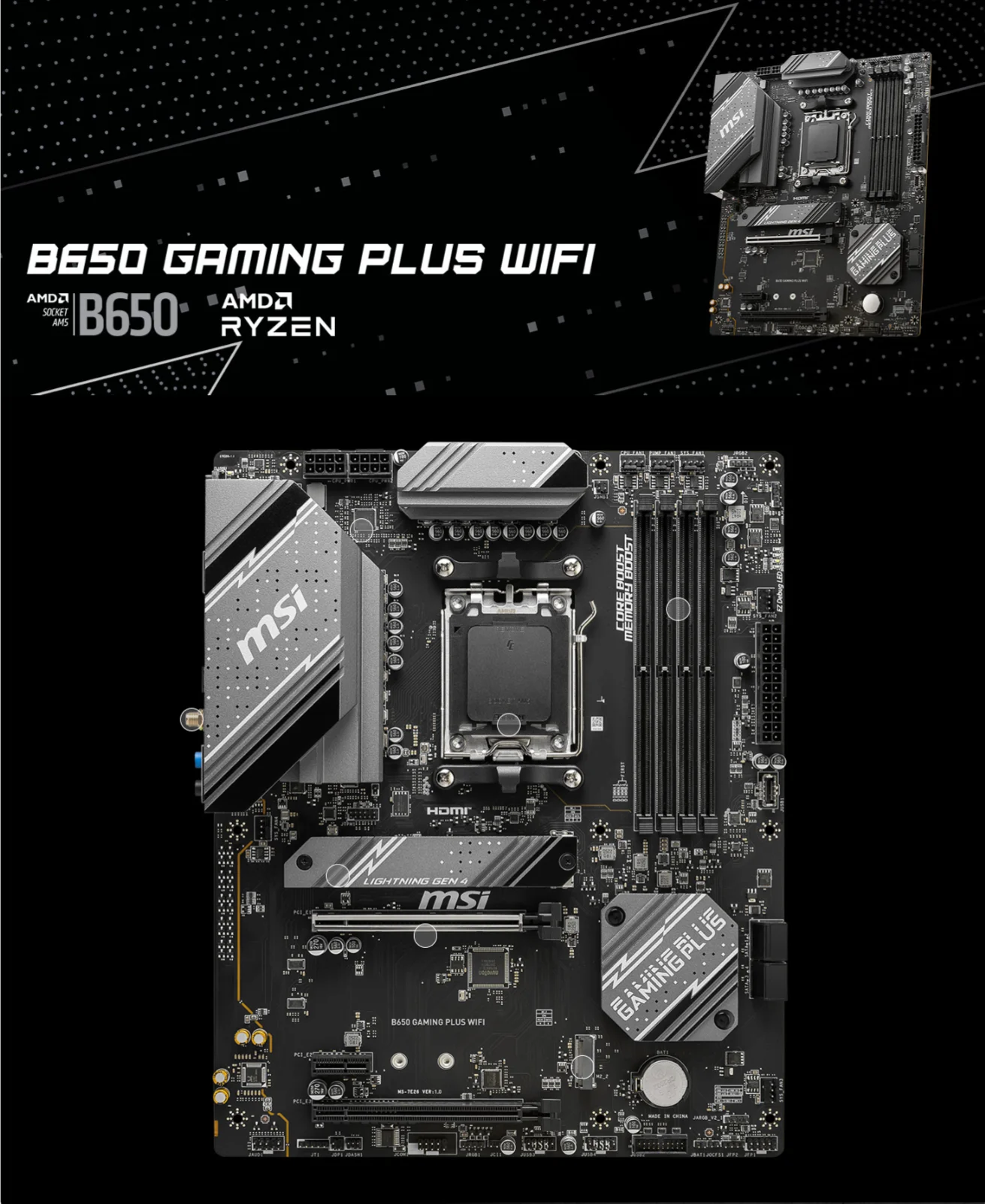

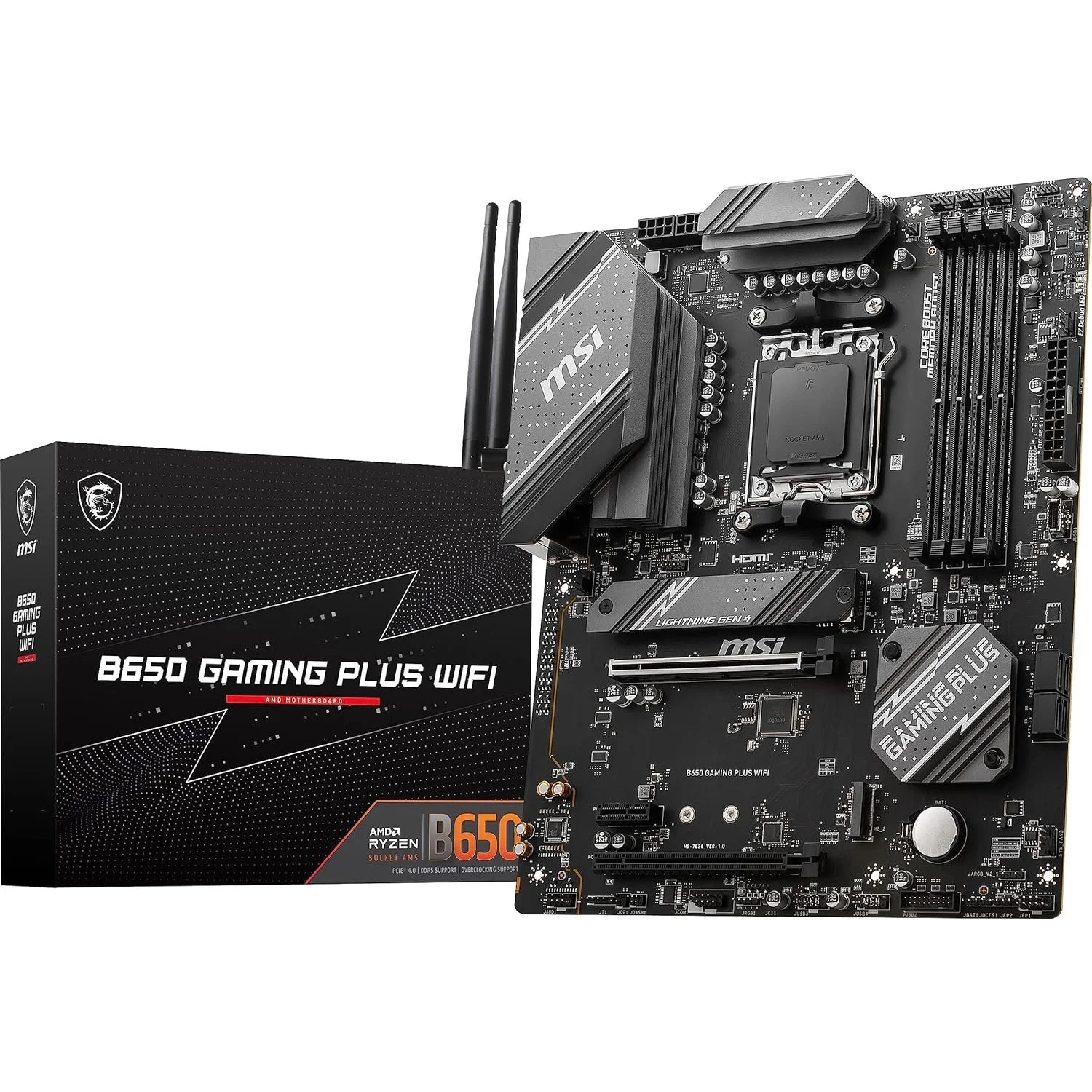

The MSI B650 Gaming Plus WiFi is a motherboard designed for gamers, featuring extensive connectivity options, flexible tools, and integrated Wi-Fi. It supports the DDR5 memory standard and utilizes the AMD B650 chipset with a Socket AM5 layout, making it suitable for modern AMD processors.
- Supports AMD Ryzen 8000/ 7000 Series Desktop Processors
- Supports DDR5 Memory, Dual Channel DDR5 6000+MHz (OC)
- Enhanced Power Design: 12+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost
- Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop work
- Lightning Fast Game experience: PCIe 4.0 slots, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, USB 3.2 Gen 2×2 20G
Overview
The MSI B650 Gaming Plus WiFi is a motherboard designed for gamers, featuring extensive connectivity options, flexible tools, and integrated Wi-Fi. It supports the DDR5 memory standard and utilizes the AMD B650 chipset with a Socket AM5 layout, making it suitable for modern AMD processors.
- Supports AMD Ryzen 8000/ 7000 Series Desktop Processors
- Supports DDR5 Memory, Dual Channel DDR5 6000+MHz (OC)
- Enhanced Power Design: 12+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost
- Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop work
- Lightning Fast Game experience: PCIe 4.0 slots, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, USB 3.2 Gen 2×2 20G
Chipset: AMD B650
CPU Support: Supports AMD Ryzenâ„¢ 9000/ 8000/ 7000 Series Desktop Processors
Socket: AM5
Memory:
- 4x DDR5, Maximum Memory Capacity 256GB
- Memory Support:
- DDR5 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
- Max Overclocking Frequency:
- 1DPC 1R: Max speed up to 7200+ MHz
- 1DPC 2R: Max speed up to 6000+ MHz
- 2DPC 1R: Max speed up to 6000+ MHz
- 2DPC 2R: Max speed up to 5400+ MHz
- Supports Dual-Channel mode
- Supports non-ECC, un-buffered memory
- Supports AMD EXPO
Onboard Graphics:
- 1x HDMIâ„¢ 2.1 with HDR, maximum resolution of 4K 60Hz*
- 1x DisplayPort 1.4, maximum resolution of 4K 60Hz*
- *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slots:
- 2x PCI-E x16 slots
- Supports x16/x4 (For Ryzenâ„¢ 9000 and 7000 Series processors)
- Supports x8/x4 (For Ryzenâ„¢ 7 8700G and Ryzenâ„¢ 5 8600G processors)
- Supports x4/x4 (For Ryzenâ„¢ 5 8500G processor)
- 1x PCI-E x1 slot
- PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
- PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
- PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
Audio:
- Realtek® ALC897 Codec
- 7.1-Channel High Definition Audio
Storage:
- 2x M.2 slots:
- M.2_1 Source (From CPU) supports up to PCIe 4.0 x4, supports 22110/2280 devices
- M.2_2 Source (From CPU) supports up to PCIe 4.0 x4, supports 2280/2260 devices
- *M2_2 supports PCIe 4.0 x2 speed when Ryzenâ„¢ 5 8500G is installed
- 4x SATA 6G ports
Multi-GPU: AMD MULTI-GPU Support
RAID:
- Supports RAID 0, RAID 1, and RAID 1 for SATA storage devices
- Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
USB:
- 4x USB 2.0 (Front)
- 4x USB 5Gbps Type A (Rear)
- 2x USB 5Gbps Type A (Front)
- 3x USB 10Gbps Type A (Rear)
- 1x USB 10Gbps Type C (Front)
- 1x USB 20Gbps Type C (Rear)
LAN: Realtek® 8125BG 2.5G LAN
Wireless LAN & Bluetooth:
- AMD Wi-Fi 6E
- The Wireless module is pre-installed in the M.2 (Key-E) slot
- Supports MU-MIMO TX/RX
- Supports 20MHz, 40MHz, 80MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands
- Supports 802.11 a/ b/ g/ n/ ac/ ax
- Supports Bluetooth® 5.3**
- *Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
- **Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
Internal IO:
- 1x Power Connector (ATX_PWR)
- 2x Power Connectors (CPU_PWR)
- 1x CPU Fan
- 1x Pump Fan
- 4x System Fans
- 2x Front Panel (JFP)
- 1x Chassis Intrusion (JCI)
- 1x Front Audio (JAUD)
- 1x Com Port (JCOM)
- 1x Tuning Controller connector (JDASH)
- 2x Addressable V2 RGB LED connectors (JARGB_V2)
- 2x RGB LED connectors (JRGB)
- 1x TPM pin header (Support TPM 2.0)
- 4x USB 2.0 ports
- 2x USB 5Gbps Type A ports
- 1x USB 10Gbps Type C port
LED Feature: 4x EZ Debug LED
