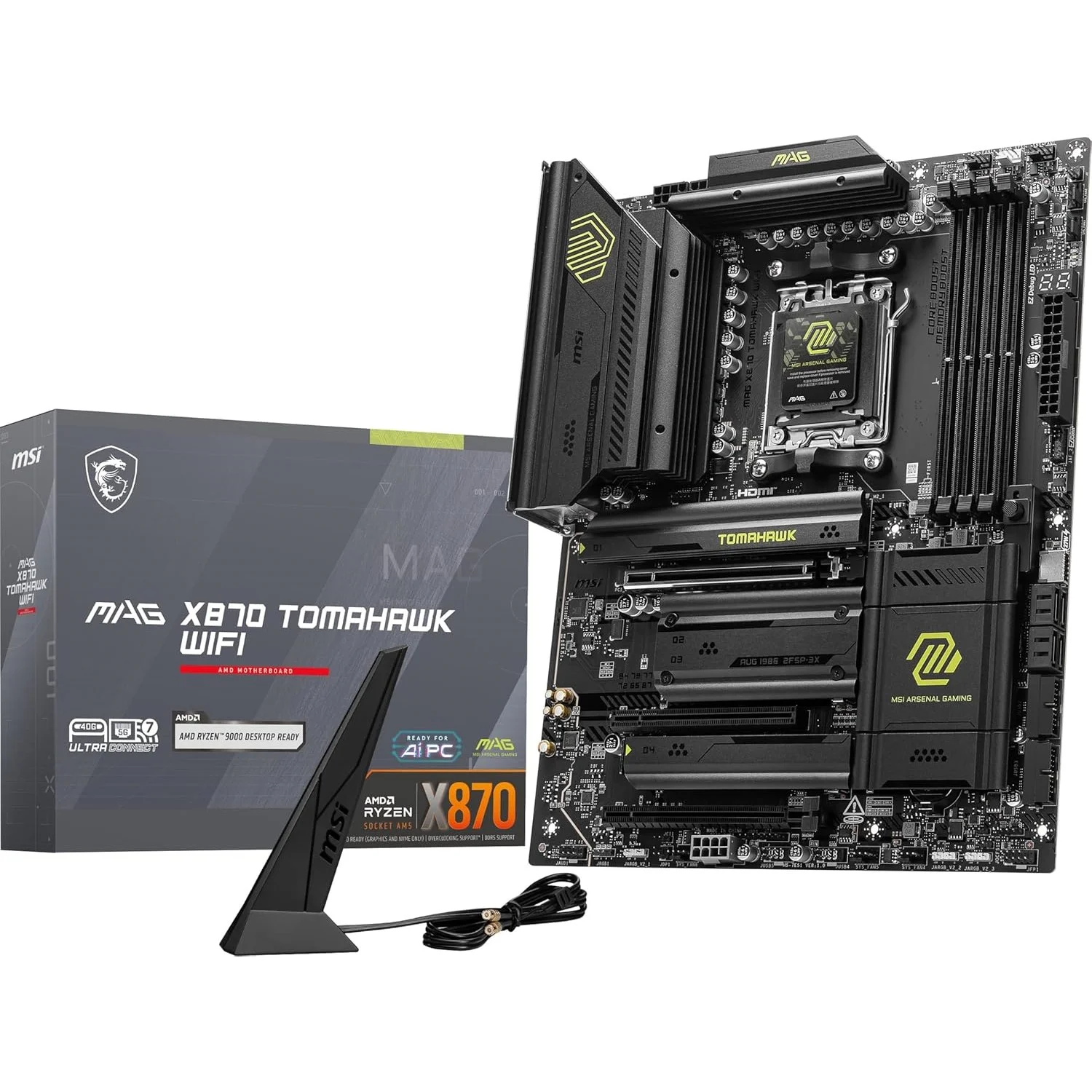

MSI MAG X870 TOMAHAWK WiFi Gaming Motherboard
SKU: 39823801
Rs 114,990
Authorised Dealer
Out of stock
This product is currently sold out.
No worries! Enter your email, and we'll let you know as soon as it's back in stock.
MSI MAG X870 TOMAHAWK WiFi Gaming Motherboard
SKU: 39823801
Rs 114,990
Authorised Dealer
Out of stock
This product is currently sold out.
No worries! Enter your email, and we'll let you know as soon as it's back in stock.
Payment Methods:
Overview

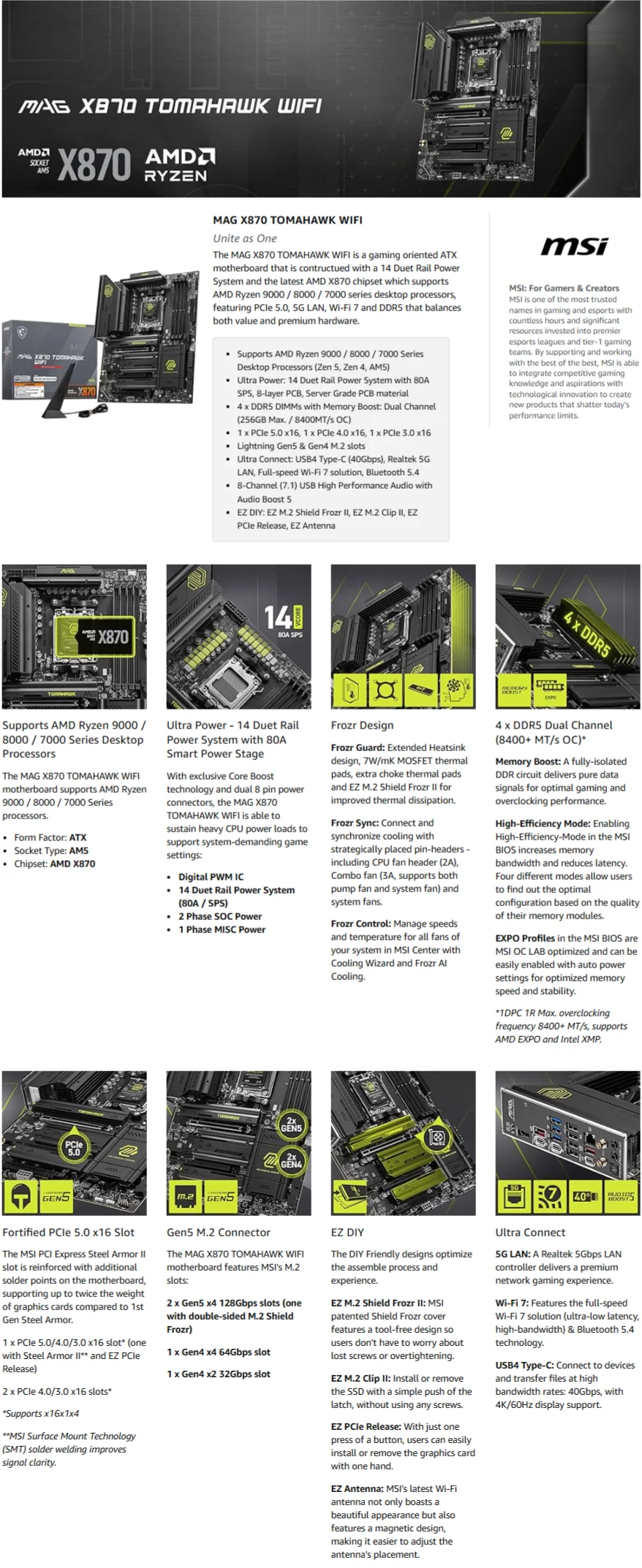

The MSI MAG X870 TOMAHAWK WIFI is a gaming oriented ATX motherboard that is contructued with a 14 Duet Rail Power System and the latest AMD X870 chipset which supports AMD Ryzen 9000 / 8000 / 7000 series desktop processors, featuring PCIe 5.0, 5G LAN, Wi-Fi 7 and DDR5 that balances both value and premium hardware.
- Supports AMD Ryzen 9000/8000/7000 Series Desktop Processors
- Lightning USB 40G: Featuring a built in USB 4 port offering lightning fast 40Gbps transmission speed
- Extended Heatsink Design: Extended PWM heatsink and enhanced circuit design ensures high-end processors to ran at full speed
- 5G Network Solution: Featuring 5G LAN to deliver network experience
- Audio Boost 5: Isolated audio with a high-quality audio processor for the most immersive gaming experience
Overview
The MSI MAG X870 TOMAHAWK WIFI is a gaming oriented ATX motherboard that is contructued with a 14 Duet Rail Power System and the latest AMD X870 chipset which supports AMD Ryzen 9000 / 8000 / 7000 series desktop processors, featuring PCIe 5.0, 5G LAN, Wi-Fi 7 and DDR5 that balances both value and premium hardware.
- Supports AMD Ryzen 9000/8000/7000 Series Desktop Processors
- Lightning USB 40G: Featuring a built in USB 4 port offering lightning fast 40Gbps transmission speed
- Extended Heatsink Design: Extended PWM heatsink and enhanced circuit design ensures high-end processors to ran at full speed
- 5G Network Solution: Featuring 5G LAN to deliver network experience
- Audio Boost 5: Isolated audio with a high-quality audio processor for the most immersive gaming experience
Chipset & CPU Support
- Chipset: AMD X870
- CPU Support: AMD Ryzenâ„¢ 9000/ 8000/ 7000 Series Desktop Processors
- Socket: AM5
Memory
- DIMM Slots: 4x DDR5 UDIMM
- Maximum Capacity: 256GB
- Supported Speeds:
- DDR5 8400 - 5600 (OC) MT/s
- DDR5 5600 - 4800 (JEDEC) MT/s
- Ryzenâ„¢ 9000 Series Max Overclocking Frequency:
- 1DPC 1R: Up to 8400+ MT/s
- 1DPC 2R: Up to 6400+ MT/s
- 2DPC 1R: Up to 6400+ MT/s
- 2DPC 2R: Up to 4800+ MT/s
- Supports AMD POR Speed, JEDEC Speed, Memory Overclocking, and AMD EXPOâ„¢
- Supports Dual-Channel mode, Non-ECC Unbuffered Memory, and CUDIMM (Clock Driver bypass mode only*)
Onboard Graphics
- Ports:
- 1x HDMIâ„¢ 2.1 FRL (Max Resolution: 8K @ 60Hz*)
- 2x Type-C DisplayPort (USB4®, DisplayPort 1.4, Max Resolution: 4K @ 60Hz*)
- Available only on processors with integrated graphics
Expansion Slots
- 3x PCI-E x16 Slots:
- PCI_E1: PCIe 5.0 x16 (From CPU)
- PCI_E2: PCIe 3.0 x1 (From Chipset)
- PCI_E3: PCIe 4.0 x4 (From Chipset)
PCI_E3 slot will run at x2 speed if M2_3 slot is occupied. Can be switched to x4 in BIOS, but M2_3 slot will be disabled.
Audio
- Codec: Realtek® ALC4080
- Channels: 7.1-Channel USB High Performance Audio
- Playback: Up to 32-bit/384kHz (Front Panel)
- Additional: Supports S/PDIF Output
Storage
- 4x M.2 Slots:
- M.2_1 (From CPU): PCIe 5.0 x4, supports 22110/2280
- M.2_2 (From CPU): PCIe 5.0 x4, supports 2280/2260
- M.2_3 (From Chipset): PCIe 4.0 x2, supports 2280/2260
- M.2_4 (From Chipset): PCIe 4.0 x4, supports 2280/2260
- 4x SATA 6G Ports
M2_2 slot will be unavailable when using Ryzenâ„¢ 8500/ 8300 Series processors.
RAID Support
- Supports RAID 0, RAID 1, and RAID 10 for M.2 NVMe storage devices
USB Connectivity
- Rear I/O:
- 4x USB 2.0
- 3x USB 5Gbps Type-A
- 2x USB 10Gbps Type-A
- 1x USB 10Gbps Type-C
- 2x USB 40Gbps Type-C
- Front Panel:
- 4x USB 2.0
- 4x USB 5Gbps Type-A
- 1x USB 20Gbps Type-C
LAN & Networking
- LAN: Realtek® 8126-CG 5G LAN
- Wireless LAN & Bluetooth:
- Wi-Fi 7 (Pre-installed in M.2 Key-E slot)
- Bands: 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps
- MU-MIMO TX/RX
- Bluetooth® 5.4, MLO, 4KQAM
6GHz support depends on country regulations. Bluetooth 5.4 and Wi-Fi 7 will be available in Windows 11 24H2 update.
Internal I/O Ports
- Power Connectors:
- 1x ATX Power (24-pin)
- 2x CPU Power (8-pin)
- 1x PCIe Power (8-pin)
- Cooling & Fan Headers:
- 1x CPU Fan
- 1x Combo Fan (Pump/Sys Fan)
- 6x System Fan
- Front Panel Connectors:
- 2x JFP (Front Panel)
- 1x Chassis Intrusion (JCI)
- 1x Front Audio (JAUD)
- RGB & Lighting Headers:
- 3x Addressable RGB V2 (JARGB_V2)
- 1x RGB LED (JRGB)
- Other Headers:
- 1x TPM 2.0 (JTPM)
- 4x USB 2.0
- 4x USB 5Gbps Type-A
- 1x USB 20Gbps Type-C
Multi-GPU Support
- AMD MULTI-GPU Support
Debug & LED Features
- 4x EZ Debug LED
- 1x EZ Digit Debug LED
- Supports AMD Ryzen 9000/8000/7000 Series Desktop Processors
- Lightning USB 40G: Featuring a built in USB 4 port offering lightning fast 40Gbps transmission speed
- Extended Heatsink Design: Extended PWM heatsink and enhanced circuit design ensures high-end processors to ran at full speed
- 5G Network Solution: Featuring 5G LAN to deliver network experience
- Audio Boost 5: Isolated audio with a high-quality audio processor for the most immersive gaming experience
