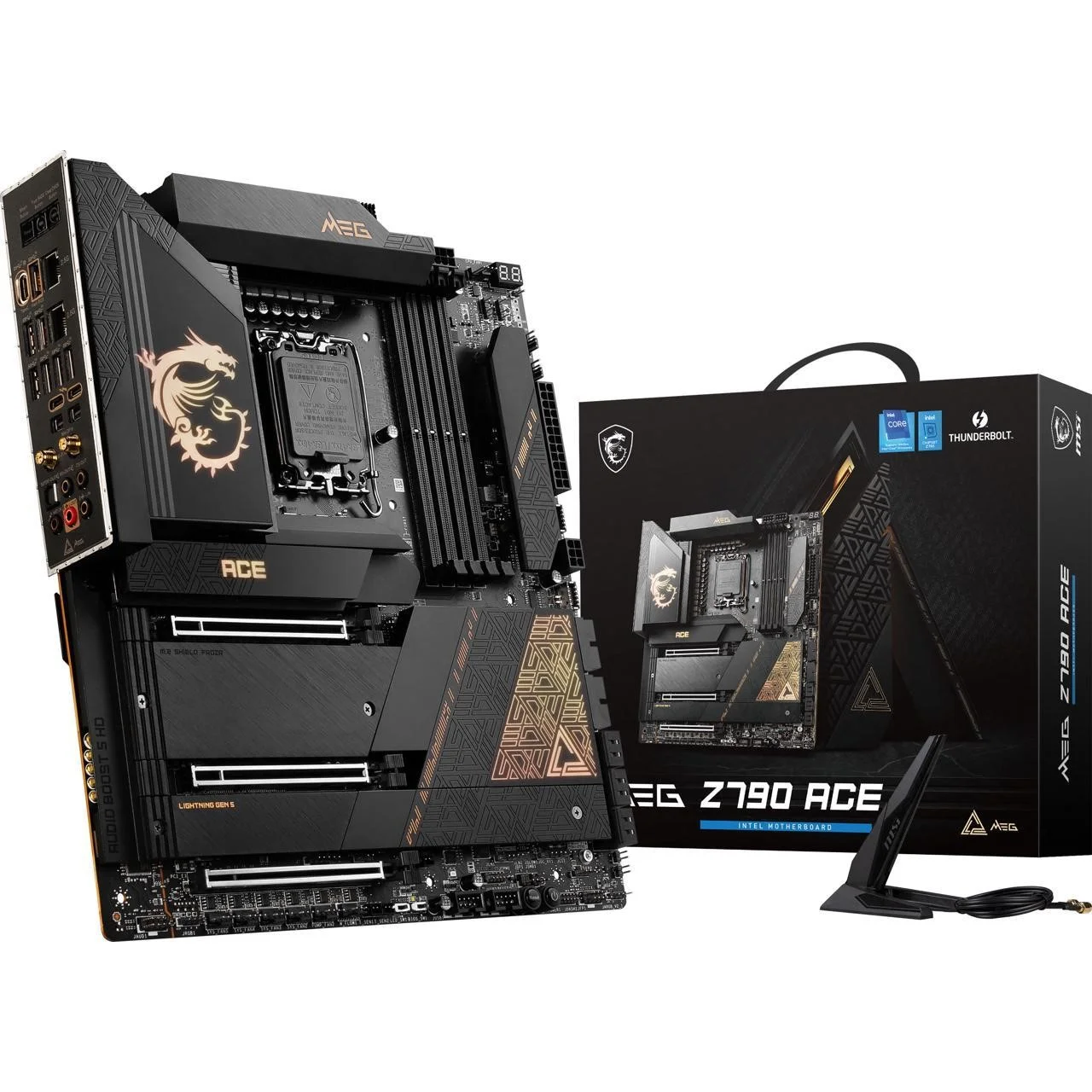

MSI MEG Z790 ACE LGA 1700 Intel Z790 SATA 6Gb/s DDR5 Extended ATX Motherboard
SKU: 39407302
Rs 177,990
Authorised Dealer
Out of stock
This product is currently sold out.
No worries! Enter your email, and we'll let you know as soon as it's back in stock.
MSI MEG Z790 ACE LGA 1700 Intel Z790 SATA 6Gb/s DDR5 Extended ATX Motherboard
SKU: 39407302
Rs 177,990
Authorised Dealer
Out of stock
This product is currently sold out.
No worries! Enter your email, and we'll let you know as soon as it's back in stock.
Payment Methods:
Overview
Overview
Chipset & CPU Support
- Chipset: Intel Z790
- CPU Support: Supports Intel® Core™ 14th/13th/12th Gen Processors, Intel® Pentium® Gold, and Celeron® Processors.
- Socket: LGA 1700
Memory
- Slots: 4x DDR5 UDIMM
- Maximum Capacity: 256GB
- Supported Speeds:
- Overclocked: Up to 7800+ MHz (1DPC 1R)
- JEDEC: 4800 to 5600 MHz
- Supports: Intel® XMP3.0 OC, Dual-Controller Dual-Channel mode, Non-ECC, un-buffered memory.
Onboard Graphics
- Type-C DisplayPort: 1x Type-C
- Resolution Support: Maximum resolution of 4K @ 60Hz (available only on processors with integrated graphics).
Expansion Slots
- PCI-E Slots:
- PCI_E1: Gen 5.0 x16 (from CPU)
- PCI_E2: Gen 5.0 x8 (from CPU)
- PCI_E3: Gen 4.0 x4 (from Chipset)
Audio
- Codec: Realtek® ALC4082 + ESS ES9280AQ Combo DAC/HPA
- Channels: 7.1-Channel USB High Performance Audio
- Support: S/PDIF output, up to 32-Bit/384 kHz playback on the front panel.
Storage
- M.2 Slots: 5x M.2
- M.2_1: PCIe 4.0 x4 (from CPU), supports up to 22110 devices
- M.2_2: PCIe 4.0 x4 (from Chipset), supports up to 2280 devices
- M.2_3: PCIe 4.0 x4/SATA (from Chipset), supports up to 2280 devices
- M.2_4: PCIe 5.0 x4 (from CPU), supports up to 2280 devices
- M.2_5: PCIe 4.0 x4/SATA (from Chipset), supports up to 22110 devices
- SATA: 6x SATA 6G ports
Multi-GPU Support
- Support: AMD MULTI-GPU
RAID
- Support:
- RAID 0, 1, 5, 10 for SATA storage devices
- RAID 0, 1, 5, 10 for M.2 NVMe storage devices
Thunderbolt
- Chip: Thunderbolt JHL8540
- Ports: 2x Thunderbolt 4 (USB-C)
- Support:
- Transfer rate: Up to 40Gbps with Thunderbolt devices, 20Gbps with USB4 devices, and 10Gbps with USB 3.2 devices
- Daisy-chaining: Up to 3 Thunderbolt 4 devices or 5 Thunderbolt 3 devices
- Display: Supports up to 8K (requires connection to the DisplayPort of the discrete graphics card).
USB
- Front Ports:
- 4x USB 2.0
- 4x USB 5Gbps Type A
- 2x USB 20Gbps Type C
- Rear Ports:
- 7x USB 10Gbps Type A
- 1x USB 10Gbps Type C
LAN
- Ports: 2x Intel® 2.5Gbps LAN
Wireless LAN & Bluetooth
- Wireless LAN: Intel® Wi-Fi 6E
- MU-MIMO TX/RX, 2.4GHz/5GHz/6GHz (160MHz) up to 2.4Gbps
- Supports 802.11 a/b/g/n/ac/ax
- Bluetooth: Version 5.3, FIPS, FISMA
Internal I/O
- Power Connectors:
- 1x ATX_PWR
- 2x CPU_PWR
- 1x Front Type-C Quick Charge Connector (PD_PWR1)
- Fan Connectors:
- 1x CPU Fan
- 2x Pump Fan
- 5x System Fan
- Other I/O Connectors:
- 2x Front Panel (JFP)
- 1x Chassis Intrusion (JCI)
- 1x Water Flow connector
- 1x Slow Mode Booting Jumper (JSLOW)
- 1x Front Audio (JAUD)
- 2x Thermal Sensor connectors (T_SEN)
- 1x Tuning Controller connector (JDASH)
- 3x Addressable V2 RGB LED connector (JARGB_V2)
- 1x RGB LED connector (JRGB)
- 1x TPM pin header (Supports TPM 2.0)
- V-check point
- 4x USB 2.0 ports
- 2x USB 5Gbps Type A ports
- 2x USB 20Gbps Type C ports
LED Features
- Controls: 1x EZ LED Control switch
- Indicators:
- 4x EZ Debug LED
- 1x 2-Digit Debug Code LED
