MSI MEG Z790 GODLIKE Gaming Motherboard (Supports 12th/13th/ 14th Gen Intel Processors, LGA 1700, DDR5, PCIe 5.0, M.2, 10Gbps LAN, USB 3.2 Gen2, Wi-Fi 6E, Bluetooth 5.3, Thunderbolt, E-ATX)
SKU: 39618922
Model:
MEG Z790 GODLIKE
Rs 267,990
Out of stock
This product is currently sold out.
No worries! Enter your email, and we'll let you know as soon as it's back in stock.
MSI MEG Z790 GODLIKE Gaming Motherboard (Supports 12th/13th/ 14th Gen Intel Processors, LGA 1700, DDR5, PCIe 5.0, M.2, 10Gbps LAN, USB 3.2 Gen2, Wi-Fi 6E, Bluetooth 5.3, Thunderbolt, E-ATX)
SKU: 39618922
Model:
MEG Z790 GODLIKE
Rs 267,990
Out of stock
This product is currently sold out.
No worries! Enter your email, and we'll let you know as soon as it's back in stock.
Payment Methods:

Overview
- Supports 12th/13th Gen Intel Core, Pentium Gold and Celeron processors for LGA 1700 socket
- Supports DDR5 Memory, Dual Channel DDR5 7800+MHz (OC)

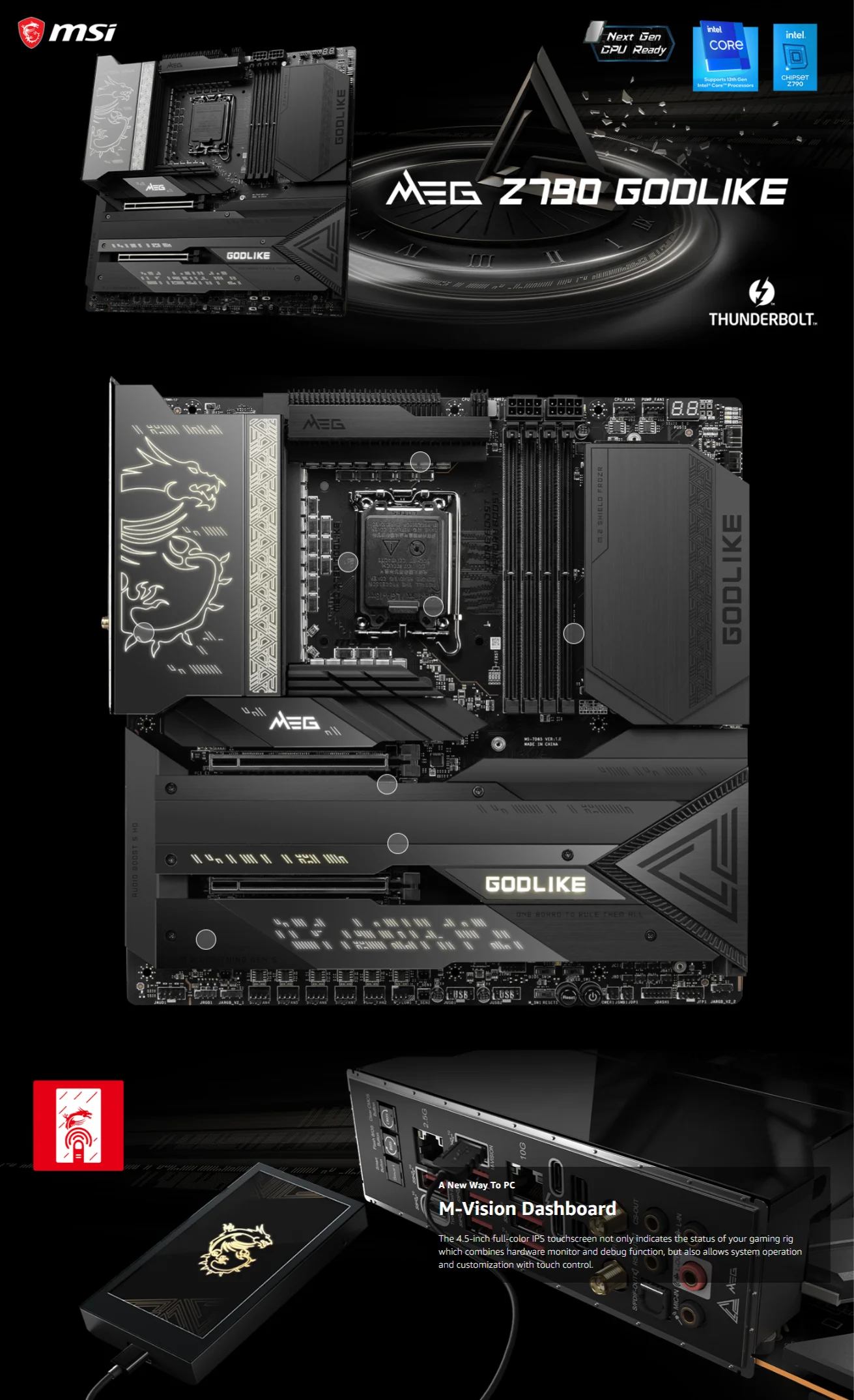

- M-Vision Dashboard: The touchable 4.5-inch full-color IPS LCD not only indicates the status of your gaming rig which combines hardware monitor and debug function, but also allows system operation and customization with touch control
- Dual Thunderbolt 4 ports: Thunderbolt USB-C at true 40 Gb/s speeds, 8K display support, Daisy-Chaining and Multi-Port Accessory Architecture provide reliable connectivity and better user experience
- Extreme Power Design: 26+2+phases power design with 105A Smart Power Stage and dual CPU power connectors are ready to unleash the maximum performance
Overview
- Supports 12th/13th Gen Intel Core, Pentium Gold and Celeron processors for LGA 1700 socket
- Supports DDR5 Memory, Dual Channel DDR5 7800+MHz (OC)
- M-Vision Dashboard: The touchable 4.5-inch full-color IPS LCD not only indicates the status of your gaming rig which combines hardware monitor and debug function, but also allows system operation and customization with touch control
- Dual Thunderbolt 4 ports: Thunderbolt USB-C at true 40 Gb/s speeds, 8K display support, Daisy-Chaining and Multi-Port Accessory Architecture provide reliable connectivity and better user experience
- Extreme Power Design: 26+2+phases power design with 105A Smart Power Stage and dual CPU power connectors are ready to unleash the maximum performance
- Chipset: Intel Z790
- CPU Support:
- Intel® Core™ 14th, 13th, and 12th Gen Processors
- Intel® Pentium® Gold and Celeron® Processors
- LGA 1700 socket
- Memory:
- 4x DDR5 UDIMM slots
- Maximum Memory Capacity: 256GB
- Supported Memory Speeds (OC and JEDEC):
- OC: 7800+, 7600, 7400, 7200, 7000, 6800, 6600, 6400, 6200, 6000, 5800 MHz
- JEDEC: 5600, 5400, 5200, 5000, 4800 MHz
- Memory Overclocking Limits:
- 1DPC 1R: Up to 7800+ MHz
- 1DPC 2R: Up to 6600+ MHz
- 2DPC 1R: Up to 6400+ MHz
- 2DPC 2R: Up to 5600+ MHz
- Features:
- Supports Intel® XMP3.0 OC
- Dual-Controller Dual-Channel Mode
- Non-ECC, un-buffered memory
- Expansion Slots:
- 2x PCI-E x16 slots
- PCI_E1 (Gen 5.0): Up to x16 (From CPU)
- PCI_E2 (Gen 5.0): Up to x8 (From CPU)
- 2x PCI-E x16 slots
- Audio:
- Realtek® ALC4082 Codec + ESS ES9280AQ Combo DAC/HPA
- 7.1-Channel USB High-Performance Audio
- Supports S/PDIF output
- 32-Bit/384 kHz playback on the front panel
- Storage:
- 7x M.2 slots:
- M.2_1: PCIe 4.0 x4 (From CPU) – Supports 22110/2280/2260 devices
- M.2_2: PCIe 4.0 x4 (From Chipset) – Supports 2280/2260 devices
- M.2_3: PCIe 4.0 x4 / SATA mode (From Chipset) – Supports 2280/2260 devices
- M.2_4: PCIe 5.0 x4 (From CPU) – Supports 22110/2280 devices
- M.2_5: PCIe 3.0 x4 / SATA mode (From Chipset) – Supports 2280/2260 devices
- M.2_6: PCIe 4.0 x4 (From Chipset) – Supports 2280/2260 devices
- M.2_7: PCIe 4.0 x4 (From Chipset) – Supports 2280/2260 devices
- 6x SATA 6G ports
- 7x M.2 slots:
- Multi-GPU Support:
- AMD Multi-GPU support
- RAID Support:
- RAID 0, 1, 5, 10 for SATA and M.2 NVMe storage devices
- Onboard Thunderbolt:
- Thunderbolt chip JHL8540
- 2x Thunderbolt 4 (USB-C) ports
- Up to 40Gbps transfer rate with Thunderbolt devices
- Up to 20Gbps transfer rate with USB4 devices
- Up to 10Gbps transfer rate with USB 3.2 devices
- Up to 5V/3A, 15W power charging
- Daisy-chain support for up to 3 Thunderbolt 4 or 5 Thunderbolt 3 devices
- Supports up to 8K display (with discrete graphics)
- USB Ports:
- Front:
- 4x USB 2.0
- 4x USB 5Gbps Type A
- 2x USB 20Gbps Type C
- Rear:
- 7x USB 10Gbps Type A
- 1x USB 10Gbps Type C
- Front:
- LAN:
- Marvell® AQC113CS-B1-C 10Gbps LAN
- Intel® 2.5Gbps LAN
- Wireless LAN & Bluetooth:
- Intel® Wi-Fi 6E
- Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz (160MHz) up to 2.4Gbps
- Bluetooth® 5.3, FIPS, FISMA compliant
- Internal IO:
- Multiple fan headers, RGB connectors, and various power connectors including:
- 1x ATX_PWR, 2x CPU_PWR, 1x Front Type-C Quick Charge (PD_PWR1)
- 1x CPU Fan, 2x Pump Fan, 7x System Fan
- 3x Addressable V2 RGB LED connectors
- 4x USB 2.0 ports
- 4x USB 5Gbps Type A ports
- 2x USB 20Gbps Type C ports
- TPM pin header (Supports TPM 2.0)
- Multiple fan headers, RGB connectors, and various power connectors including:
- LED Features:
- EZ LED Control switch
- 4x EZ Debug LED
- 1x 2-Digit Debug Code LED
