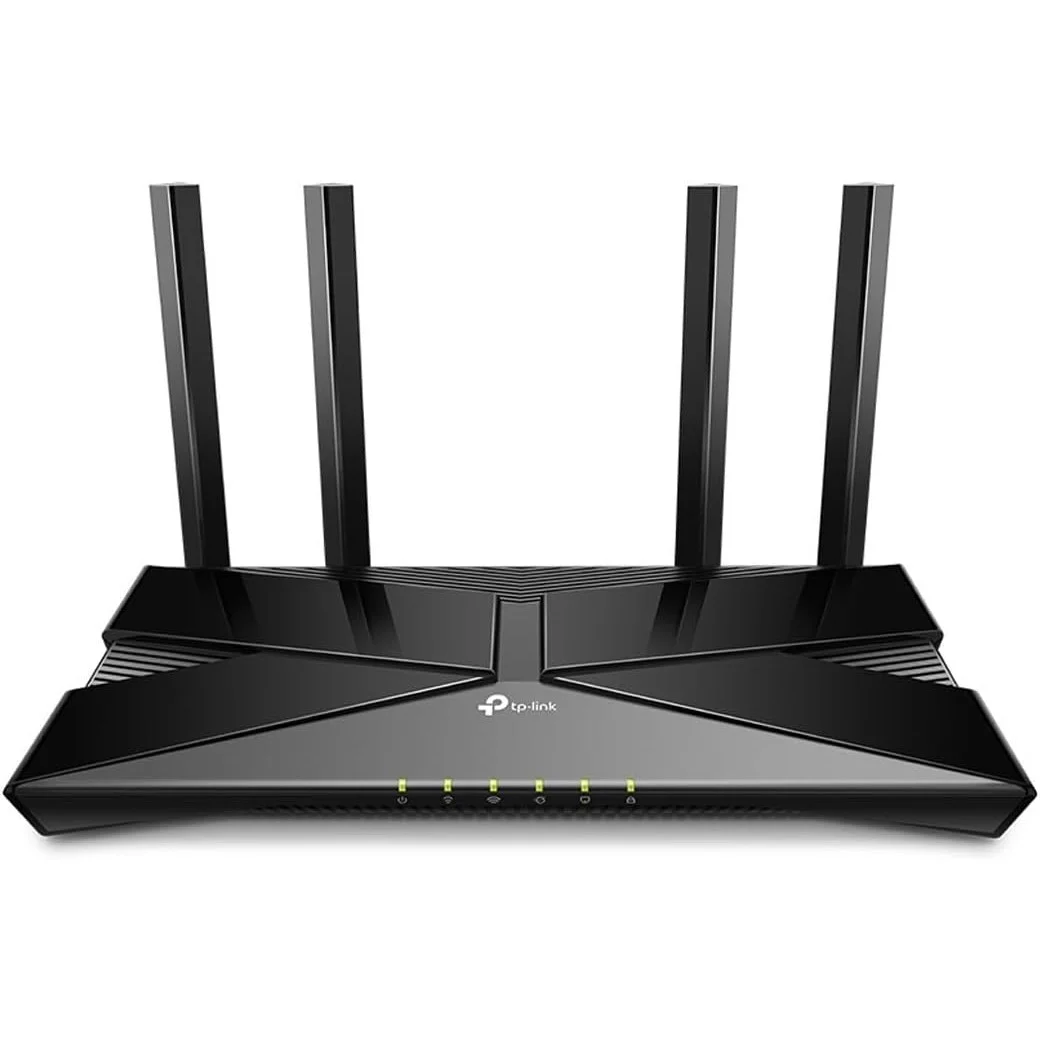

TP-Link XX230v AX1800 Dual Band Wi-Fi 6 GPON Router

SKU: 39852112
Model: XX230v

Rs 21,390

Authorised Dealer

Out of stock

This product is currently sold out.

No worries! Enter your email, and we'll let you know as soon as it's back in stock.

  • Need help? Ask our Experts

TP-Link XX230v AX1800 Dual Band Wi-Fi 6 GPON Router

SKU: 39852112
Model: XX230v

Rs 21,390

Authorised Dealer

Out of stock

This product is currently sold out.

No worries! Enter your email, and we'll let you know as soon as it's back in stock.

Payment Methods:

Payment methods 1.jpg
  • Need help? Ask our Experts

Overview

The TP-Link XX230V AX1800 is a wireless VoIP GPON router that supports dual-band Wi-Fi 6, providing speeds of up to 1.8 Gbps (1201 Mbps on 5 GHz and 574 Mbps on 2.4 GHz). It includes full Gigabit ports and a USB 2.0 port to enhance connectivity options for users.

  • Next-Gen 1.8 Gbps Speeds: Enjoy smooth streaming, downloading, and gaming all without buffering with WiFi speeds up to 1.8 Gbps across two bands.
  • Boosted Coverage: Four high-performance antennas and Beamforming technology combine to extend strong, reliable WiFi throughout your home.
  • More Connections: OFDMA and MU-MIMO technologies increase capacity and enable simultaneous transmission to more devices.
  • EasyMesh Compatible: Create a smart mesh network with seamless coverage and greater flexibility based on standard mesh technology.
  • Gigabit Wired Connections: 1× GbE WAN/LAN port and 3× GbE LAN ports provide fast and flexible internet access.
  • VoIP Calls: Support multiple VoIP accounts and various call features to surpass traditional landlines.
  • Smooth IPTV: Supports IGMP Proxy/Snooping, Bridge and Tag VLAN to optimize IPTV streaming.
  • Enhanced Security: WPA3 encryption, Multi-SSID, and parental controls provide personalized and safer online experiences.
  • Compact Fiber Tray Design: Store a redundant fiber cable inside and protect the fiber cable from breaking.
  • Easy Setup and Use: Set up your network in minutes with the powerful Aginet app.
  • Remote Management: Supports TAUC (TP-Link Aginet Unified Cloud, based on TR-369) along with OMCI, TR-069, TR-098, TR-181, TR-111, and TR-143 protocols.

Overview

The TP-Link XX230V AX1800 is a wireless VoIP GPON router that supports dual-band Wi-Fi 6, providing speeds of up to 1.8 Gbps (1201 Mbps on 5 GHz and 574 Mbps on 2.4 GHz). It includes full Gigabit ports and a USB 2.0 port to enhance connectivity options for users.

  • Next-Gen 1.8 Gbps Speeds: Enjoy smooth streaming, downloading, and gaming all without buffering with WiFi speeds up to 1.8 Gbps across two bands.
  • Boosted Coverage: Four high-performance antennas and Beamforming technology combine to extend strong, reliable WiFi throughout your home.
  • More Connections: OFDMA and MU-MIMO technologies increase capacity and enable simultaneous transmission to more devices.
  • EasyMesh Compatible: Create a smart mesh network with seamless coverage and greater flexibility based on standard mesh technology.
  • Gigabit Wired Connections: 1× GbE WAN/LAN port and 3× GbE LAN ports provide fast and flexible internet access.
  • VoIP Calls: Support multiple VoIP accounts and various call features to surpass traditional landlines.
  • Smooth IPTV: Supports IGMP Proxy/Snooping, Bridge and Tag VLAN to optimize IPTV streaming.
  • Enhanced Security: WPA3 encryption, Multi-SSID, and parental controls provide personalized and safer online experiences.
  • Compact Fiber Tray Design: Store a redundant fiber cable inside and protect the fiber cable from breaking.
  • Easy Setup and Use: Set up your network in minutes with the powerful Aginet app.
  • Remote Management: Supports TAUC (TP-Link Aginet Unified Cloud, based on TR-369) along with OMCI, TR-069, TR-098, TR-181, TR-111, and TR-143 protocols.

Hardware Features

  • External Power Supply: 12V/1.5A
  • Interface:
    • 1 × SC/APC GPON Port
    • 1 × 10/100/1000 Mbps WAN/LAN Port
    • 3 × 10/100/1000 Mbps LAN Ports
    • 1 × FXS Port
    • 1 × USB 2.0 Port
  • Buttons:
    • WPS/Wi-Fi Button
    • RESET Button
    • Power On/Off Button
  • Antenna: 4 External Antennas
  • Data Rates:
    • Downstream Speeds: 2.488 Gbps (GPON)
    • Upstream Speeds: 1.244 Gbps (GPON)

Wireless Features

  • Frequency: 2.4 GHz and 5 GHz
  • Signal Rate: AX1800
    • 5 GHz: Up to 1201 Mbps (HE80)
    • 2.4 GHz: Up to 574 Mbps (HE40)*
  • Transmit Power:
    • CE: <20 dBm (2.4 GHz)
    • CE: <23 dBm (5 GHz)
  • Wireless Functions:
    • Enable/Disable Wireless Radio
    • WMM
    • Wireless Statistics
  • Wireless Security: WPA/WPA2/WPA3 Encryption
  • Wireless Standards:
    • IEEE 802.11a/n/ac/ax (5 GHz)
    • IEEE 802.11b/g/n/ax (2.4 GHz)
  • Multi-SSID:
    • 2 × 5 GHz Multi-SSID
    • 2 × 2.4 GHz Multi-SSID
  • Wireless Schedule: Support for 2.4 GHz and 5 GHz Wireless Schedule
  • Mesh Technology: EasyMesh Compatible, supports 802.11k/v/r

Software Features

  • DHCP:
    • Server, Client
    • DHCP Client List
    • Address Reservation
    • DHCP Relay
  • Port Forwarding: Virtual Server, Port Triggering, DMZ, ALG, UPnP
  • Quality of Service: Hardware QoS, Flow Classification
  • Dynamic DNS: DynDns, NO-IP
  • VPN Pass-Through: PPTP, L2TP, IPSec
  • Management:
    • Local: WebGUI, Aginet app (for end users)
    • Remote: Aginet ACS, OMCI, TR-069/TR-369, TR-098, TR-181, TR-111, TR-143 (for service providers)
    • Aginet APP for end users (requires TP-Link ID and device binding)
    • Cloud: TP-Link Aginet Unified Cloud (TAUC)
  • Security:
    • NAT Firewall
    • Access Control
    • MAC/IP/URL Filtering
    • IP and MAC Address Binding
    • Defense against DoS attacks (including SYN Flooding and Ping of Death)
  • Advanced Functions:
    • Parental Controls
    • Network Address Translation (NAT)
    • Port Mapping (Grouping)
    • Static Routing
    • DNS Relay
    • DDNS
    • IGMP V1/V2/V3
  • Protocols: IPv4, IPv6
  • VPN Server: PPTP VPN, IPSec VPN, OpenVPN

Others

  • Package Contents:
    • WiFi6 GPON Router XX230v
    • RJ45 Ethernet Cable
    • Power Adapter
    • Quick Installation Guide
  • System Requirements:
    • Operating Systems: Microsoft Windows 98SE/NT/2000/XP/Vistaâ„¢/7/8/8.1/10, MAC OS, NetWare, UNIX, or Linux
    • Browsers: Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browsers
    • Subscription with an Internet Service Provider (for Internet access)
  • Environment:
    • Operating Temperature: 0℃–40℃ (32℉–104℉)
    • Storage Temperature: -40℃–60℃ (-40℉–140℉)
    • Operating Humidity: 10%–90% non-condensing
    • Storage Humidity: 5%–90% non-condensing
