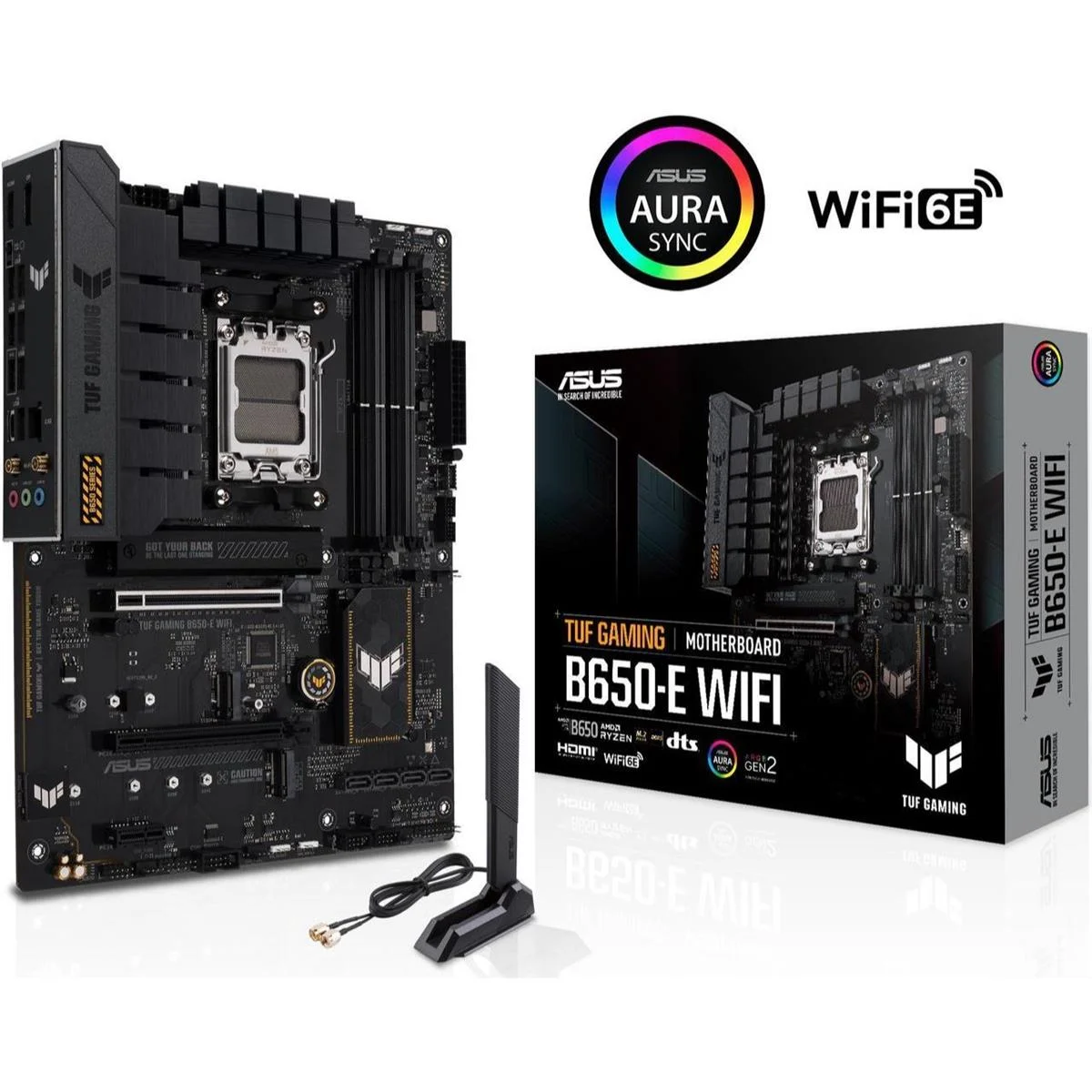

ASUS TUF GAMING B650-E WIFI AMD B650 AM5 ATX Motherboard
SKU: 39191516
Rs 67,490
Authorised Dealer
Out of stock
This product is currently sold out.
No worries! Enter your email, and we'll let you know as soon as it's back in stock.
ASUS TUF GAMING B650-E WIFI AMD B650 AM5 ATX Motherboard
SKU: 39191516
Rs 67,490
Authorised Dealer
Out of stock
This product is currently sold out.
No worries! Enter your email, and we'll let you know as soon as it's back in stock.
Payment Methods:

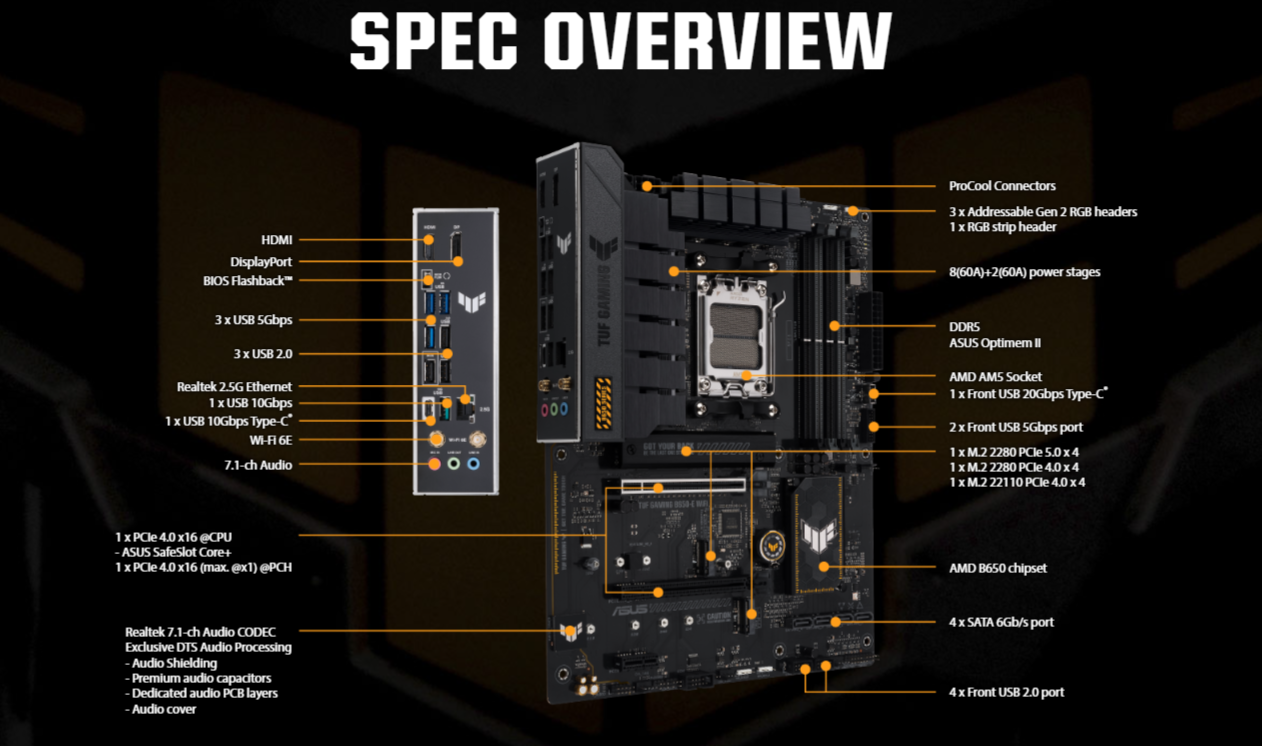

Overview
- AMD AM5 socket: Ready for AMD Ryzen 8000/7000 Series desktop processors
- Enhanced power solution: 8+2 teamed power stages, 8+4 ProCool sockets, alloy chokes and durable capacitors for stable power delivery
- Comprehensive cooling: Enlarged VRM and PCH heatsinks, M.2 heatsinks, hybrid fan headers and Fan Xpert 4 utility in Armoury Crate
- Latest connectivity: PCIe 5.0 slot, PCIe 5.0 M.2 slot, USB 10Gbps Type-C, Front USB 20Gbps Type-C
- Made for online gaming: Intel Wi-Fi 6E, Realtek 2.5Gb Ethernet, TUF LANGuard
- Two-way AI Noise-Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences
- Aura Sync RGB effects: Stylish edge lighting design, addressable RGB headers and RGB strip header support.
Overview
- AMD AM5 socket: Ready for AMD Ryzen 8000/7000 Series desktop processors
- Enhanced power solution: 8+2 teamed power stages, 8+4 ProCool sockets, alloy chokes and durable capacitors for stable power delivery
- Comprehensive cooling: Enlarged VRM and PCH heatsinks, M.2 heatsinks, hybrid fan headers and Fan Xpert 4 utility in Armoury Crate
- Latest connectivity: PCIe 5.0 slot, PCIe 5.0 M.2 slot, USB 10Gbps Type-C, Front USB 20Gbps Type-C
- Made for online gaming: Intel Wi-Fi 6E, Realtek 2.5Gb Ethernet, TUF LANGuard
- Two-way AI Noise-Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences
- Aura Sync RGB effects: Stylish edge lighting design, addressable RGB headers and RGB strip header support.
Model
TUF GAMING B650-E WIFI
CPU
AMD Socket AM5 for AMD Ryzen™ 9000, 8000, & 7000 Series Desktop Processors
Refer to www.asus.com for CPU support list.
Chipset
AMD B650
Memory
4 x DIMM, Max. 192GB, DDR5
Supports speeds: 8000+(OC), 7800(OC), 7600(OC), 7200(OC), 7000(OC), 6800(OC), 6600(OC), 6400(OC), 6200(OC), 6000(OC), 5800(OC), 5600(OC), 5400(OC), 5200, 5000, 4800 ECC and Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports AMD EXTended Profiles for Overclocking (EXPO™)
OptiMem II
Memory support may vary based on CPU and memory configuration, please refer to www.asus.com for full details.
Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function.
Graphics
1 x DisplayPort
1 x HDMI® port
Supports max. 8K@60Hz in DisplayPort 1.4
Supports 4K@60Hz in HDMI 2.1
VGA resolution support depends on the processor or graphic card.
Expansion Slots
- For AMD Ryzen™ 9000 & 7000 Series Desktop Processors:
1 x PCIe 4.0/3.0 x16 slot - For AMD Ryzen™ 8000 Series Desktop Processors:
1 x PCIe 4.0 x16 slot (supports x8/x4 mode) - For AMD B650 Chipset:
1 x PCIe 4.0/3.0 x16 slot (supports x1 mode)
1 x PCIe 4.0/3.0 x1 slot
Please refer to the PCIe bifurcation table on the Asus support site for full compatibility details.
Storage
- Total of 3 x M.2 slots and 4 x SATA 6Gb/s ports
- For AMD Ryzen™ 9000 & 7000 Series Desktop Processors:
- M.2_1 slot (Key M), type 2242/2260/2280 (PCIe 5.0 x4 mode)
- M.2_2 slot (Key M), type 2242/2260/2280 (PCIe 4.0 x4 mode)
- For AMD Ryzen™ 8000 Series Desktop Processors:
- M.2_1 slot (Key M), type 2242/2260/2280 (PCIe 4.0 x4 mode)
- M.2_2 slot (Key M), type 2242/2260/2280 (PCIe 4.0 x4/x2 mode)
- For AMD B650 Chipset:
- M.2_3 slot (Key M), type 2242/2260/2280/22110 (PCIe 4.0 x4 mode)
- 4 x SATA 6Gb/s ports
AMD RAIDXpert2 Technology supports PCIe RAID 0/1/10 and SATA RAID 0/1/10.
Ethernet
- 1 x Realtek 2.5Gb Ethernet
- TUF LANGuard
Wireless & Bluetooth
- Wi-Fi 6E (2x2, 802.11 a/b/g/n/ac/ax)
Supports 2.4GHz/5GHz/6GHz bands - Bluetooth® v5.3**
Wi-Fi 6E regulatory may vary by country.
Bluetooth version may vary; refer to the Wi-Fi module manufacturer's website for updated specifications.
USB Ports
- Rear USB (8 total):
- 2 x USB 10Gbps (1 x Type-A + 1 x Type-C®)
- 3 x USB 5Gbps (Type-A)
- 3 x USB 2.0 (Type-A)
- Front USB (7 total):
- 1 x USB 20Gbps (Type-C®)
- 1 x USB 5Gbps header (supports 2 more USB 5Gbps ports)
- 2 x USB 2.0 headers (supports 4 more USB 2.0 ports)
Audio
- Realtek 7.1 Surround Sound High Definition Audio CODEC
- Supports Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Up to 24-Bit/192 kHz playback
Audio Features:
- Audio Shielding
- Premium audio capacitors
- Dedicated PCB layers for audio
- Audio cover
Back Panel I/O Ports
- 2 x USB 10Gbps (1 x Type-A + 1 x Type-C®)
- 3 x USB 5Gbps (3 x Type-A)
- 3 x USB 2.0 (3 x Type-A)
- 1 x DisplayPort
- 1 x HDMI® port
- 1 x Wi-Fi Module
- 1 x Realtek 2.5Gb Ethernet port
- 5 x Audio jacks
- 1 x BIOS FlashBack™ button
Internal I/O Connectors
- 1 x 4-pin CPU Fan header
- 1 x 4-pin CPU OPT Fan header
- 1 x 4-pin AIO Pump header
- 4 x 4-pin Chassis Fan headers
- 1 x 24-pin Main Power connector
- 1 x 8-pin +12V Power connector
- 1 x 4-pin +12V Power connector
- 3 x M.2 slots (Key M)
- 4 x SATA 6Gb/s ports
- 1 x USB 20Gbps connector (USB Type-C®)
- 1 x USB 5Gbps header (supports 2 additional USB 5Gbps ports)
- 2 x USB 2.0 headers (supports 4 additional USB 2.0 ports)
- 3 x Addressable Gen 2 headers
- 1 x Aura RGB header
- 1 x Clear CMOS header
- 1 x COM Port header
- 1 x Front Panel Audio header (AAFP)
- 20-3 pin System Panel header with chassis intrude function
Special Features
- ASUS TUF PROTECTION:
- DIGI+ VRM (Digital power design with DrMOS)
- Enhanced DRAM Overcurrent Protection
- ESD Guards
- TUF LANGuard
- Overvoltage Protection
- SafeSlot Core+
- Stainless-Steel Back I/O
- ASUS Q-Design:
- M.2 Q-Latch
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [green-yellow])
- Q-Slot
- ASUS Thermal Solution:
- M.2 Heatsink
- VRM Heatsink Design
- ASUS EZ DIY:
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- ProCool
- Pre-mounted I/O shield
- SafeDIMM
- Aura Sync:
- Aura RGB header(s)
- Addressable Gen 2 header(s)
Software Features
- Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 4
- Power Saving
- Two-Way AI Noise Cancellation
- AI Suite 3
- TurboV EVO
- DIGI+ VRM
- PC Cleaner
- TUF GAMING CPU-Z
- DTS Audio Processing
- MyAsus
- Norton Anti-virus software (Free Trial)
- WinRAR
BIOS
- 256 Mb Flash ROM, UEFI AMI BIOS
- ASUS EZ DIY features:
- CrashFree BIOS 3
- EZ Flash 3
- UEFI BIOS EZ Mode
Operating System
- Windows® 11
- Windows® 10 64-bit
Form Factor
- ATX Form Factor
- 12 inches x 9.6 inches (30.5 cm x 24.4 cm)
