MSI MAG X670E TOMAHAWK WiFi DDR5 ATX Motherboard
SKU: 39133041
Rs 76,990
Authorised Dealer
Out of stock
This product is currently sold out.
No worries! Enter your email, and we'll let you know as soon as it's back in stock.
MSI MAG X670E TOMAHAWK WiFi DDR5 ATX Motherboard
SKU: 39133041
Rs 76,990
Authorised Dealer
Out of stock
This product is currently sold out.
No worries! Enter your email, and we'll let you know as soon as it's back in stock.
Payment Methods:
Overview

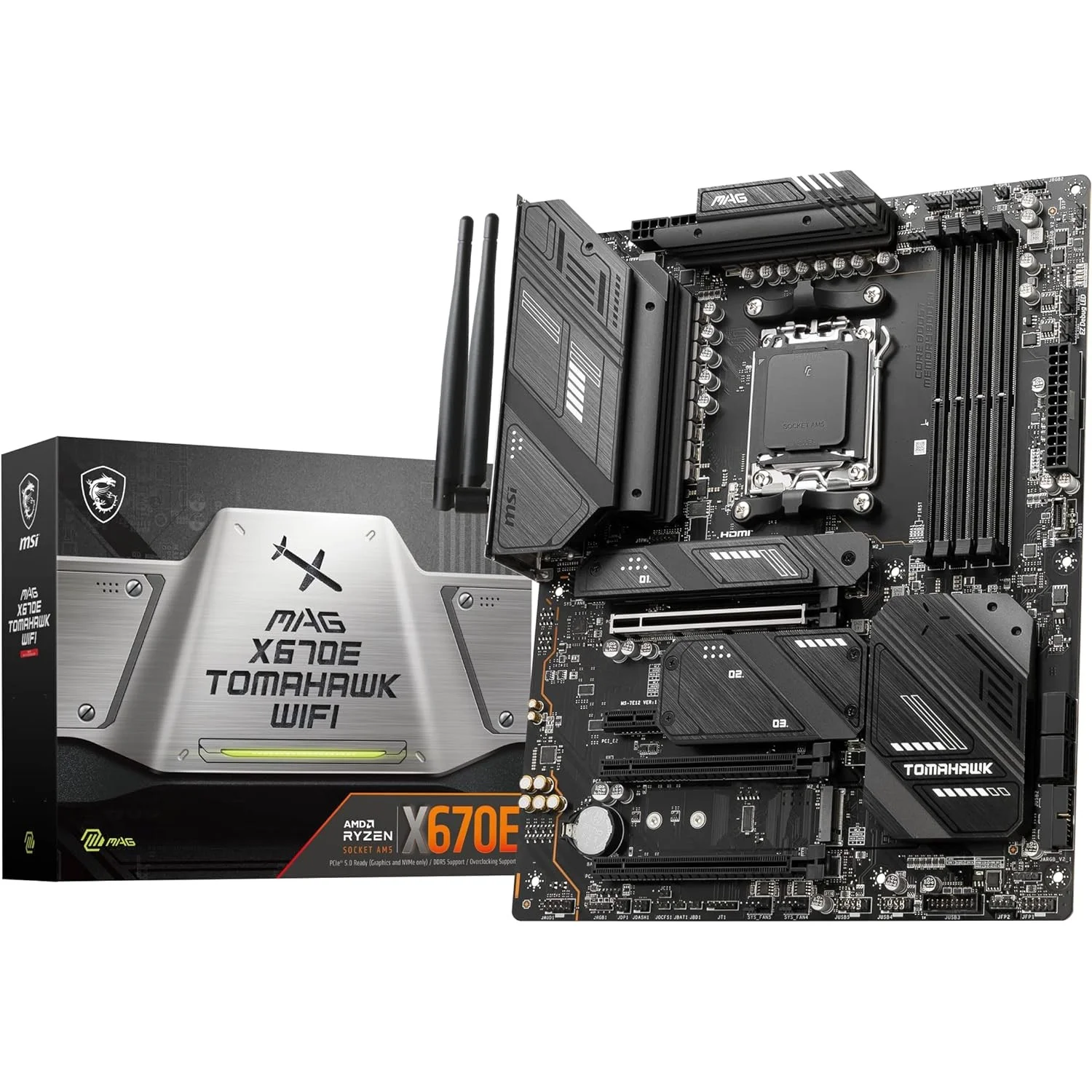

The MSI MAG X670E Tomahawk WiFi motherboard supports AMD Ryzen 7000 Series processors and features DDR5 memory compatibility, allowing speeds of up to 7800+(OC) MHz. It is designed with an enhanced power system, including a 14+2+1 Duet Rail Power System, making it suitable for heavy gaming loads and high-performance computing.
- Ryzen 7000 READY, HIGH PERFORMANCE – The MAG X670E TOMAHAWK WIFI (ATX) employs a 14+2 Duet Rail VRM with 80A SPS VRM for the AMD X670 chipset (AM5, Ryzen 7000 ready); Core Boost for enhanced CPU performance
- INTEGRATED COOLING – VRM cooling features 7W/mK MOSFET thermal pads and an extended heatsink; Includes chipset heatsink, M.2 Shield Frozr, a dedicated pump-fan cooling header & 8-layer server-grade PCB with 2 oz. thickened copper
- DDR5 MEMORY, PCIe 5.0 & 4.0 x16 SLOTS – 4 x DDR5 DIMM slots with Memory Boost isolated circuitry for overclocking (1DPC 1R, 6600+ MHz); Primary PCIe x16 slot supports PCIe 5.0 (128Gbps) and includes Steel Armor, secondary PCIe x16 slots supports PCIe 4.0
- Quadruple M.2 CONNECTORS – Storage options include 1 x M.2 Gen5 128Gbps slot and 3 x M.2 Gen4 x4 64Gbps slots with Shield Frozr to prevent thermal throttling during hyper-fast SSD access
- WI-FI 6E CONNECTIVITY – Network hardware includes an AMD Wi-Fi 6E module with Bluetooth 5.3 & 2.5Gbps LAN; Rear ports include USB 3.2 Gen 2×2 Type-C (20Gbps), HDMI 2.1 & DisplayPort 1.4, and 7.1 HD Audio with Audio Boost (supports S/PDIF output)
Overview
The MSI MAG X670E Tomahawk WiFi motherboard supports AMD Ryzen 7000 Series processors and features DDR5 memory compatibility, allowing speeds of up to 7800+(OC) MHz. It is designed with an enhanced power system, including a 14+2+1 Duet Rail Power System, making it suitable for heavy gaming loads and high-performance computing.
- Ryzen 7000 READY, HIGH PERFORMANCE – The MAG X670E TOMAHAWK WIFI (ATX) employs a 14+2 Duet Rail VRM with 80A SPS VRM for the AMD X670 chipset (AM5, Ryzen 7000 ready); Core Boost for enhanced CPU performance
- INTEGRATED COOLING – VRM cooling features 7W/mK MOSFET thermal pads and an extended heatsink; Includes chipset heatsink, M.2 Shield Frozr, a dedicated pump-fan cooling header & 8-layer server-grade PCB with 2 oz. thickened copper
- DDR5 MEMORY, PCIe 5.0 & 4.0 x16 SLOTS – 4 x DDR5 DIMM slots with Memory Boost isolated circuitry for overclocking (1DPC 1R, 6600+ MHz); Primary PCIe x16 slot supports PCIe 5.0 (128Gbps) and includes Steel Armor, secondary PCIe x16 slots supports PCIe 4.0
- Quadruple M.2 CONNECTORS – Storage options include 1 x M.2 Gen5 128Gbps slot and 3 x M.2 Gen4 x4 64Gbps slots with Shield Frozr to prevent thermal throttling during hyper-fast SSD access
- WI-FI 6E CONNECTIVITY – Network hardware includes an AMD Wi-Fi 6E module with Bluetooth 5.3 & 2.5Gbps LAN; Rear ports include USB 3.2 Gen 2×2 Type-C (20Gbps), HDMI 2.1 & DisplayPort 1.4, and 7.1 HD Audio with Audio Boost (supports S/PDIF output)
Chipset & CPU Support
- Chipset: AMD X670
- CPU Support:
- AMD Ryzen 9000, 8000, 7000 Series Desktop Processors (Socket AM5)
Memory
- Slots: 4x DDR5
- Maximum Capacity: 256GB
- Supported Speeds:
- DDR5 7800+(OC), 7600(OC), 7400(OC), 7200(OC), 7000(OC), 6800(OC), 6600(OC), 6400(OC), 6200(OC), 6000(OC), 5800(OC), 5600(OC), 5400(OC), 5200(OC), 5000(OC), 4800 (JEDEC)
- Max Overclocking Frequency:
- 1DPC 1R: Up to 7800+ MHz
- 1DPC 2R: Up to 6400+ MHz
- 2DPC 1R: Up to 6400+ MHz
- 2DPC 2R: Up to 5400+ MHz
- Dual-Channel Support: Yes
- Memory Type: Non-ECC, unbuffered
- AMD EXPO Support: Yes
Onboard Graphics
- Outputs:
- 1x HDMI™ (4K @ 120Hz, HDMI 2.1 FRL)
- 1x DisplayPort (4K @ 60Hz, DP 1.4)
- 1x Type-C DisplayPort (4K @ 120Hz, DisplayPort 1.4 with HBR3)
- Graphics capabilities depend on the CPU’s integrated graphics.
Expansion Slots
- PCI-E Slots:
- 3x PCI-E x16
- Supports x16/x4/x2 for Ryzen 9000 and 7000 Series
- Supports x8/x4/x2 for Ryzen 7 8700G and Ryzen 5 8600G
- Supports x4/x2/x2 for Ryzen 5 8500G
- 1x PCI-E x1 (from chipset)
- 3x PCI-E x16
- Note: PCI_E4 and M2_4 share bandwidth; M2_4 will run at x2 speed when a device is installed in the PCI_E4 slot.
Audio
- Codec: Realtek ALC1200
- Audio Channels: 7.1-Channel High Definition Audio
- S/PDIF Output: Yes
Storage
- M.2 Slots: 4x
- M.2_1: PCIe 5.0 x4 (supports 22110/2280 devices)
- M.2_2: PCIe 4.0 x4 (supports 2280/2260 devices)
- M.2_3: PCIe 4.0 x4 (supports 2280/2260 devices)
- M.2_4: PCIe 4.0 x4 (supports 2280/2260 devices)
- SATA Ports: 4x SATA 6Gb/s
- RAID Support:
- RAID 0, RAID 1, and RAID 10 for SATA and M.2 NVMe devices
USB Ports
- USB 2.0: 4x Front
- USB 3.0 (5Gbps): 4x Rear, 4x Front
- USB 10Gbps: 2x Type A (Rear), 1x Type C (Rear), 1x Type C (Front)
- USB 20Gbps: 1x Type C (Rear)
LAN & Wireless
- LAN Controller: Realtek RTL8125BG 2.5Gbps LAN
- Wireless LAN:
- AMD Wi-Fi 6E (pre-installed in M.2 Key-E slot)
- Supports MU-MIMO TX/RX, 20MHz to 160MHz bandwidth across 2.4GHz, 5GHz, and 6GHz bands
- Compatible with 802.11 a/b/g/n/ac/ax
- Bluetooth: Bluetooth 5.3
Internal I/O
- Connectors:
- Power Connectors (1x ATX_PWR, 2x CPU_PWR)
- Fan Headers (1x CPU, 1x Pump, 6x System)
- Front Panel (JFP)
- Chassis Intrusion (JCI)
- Front Audio (JAUD)
- Tuning Controller Connector (JDASH)
- RGB LED Connectors (2x Addressable V2, 2x standard)
- TPM Pin Header (supports TPM 2.0)
LED Feature
- Debugging: 4x EZ Debug LED
