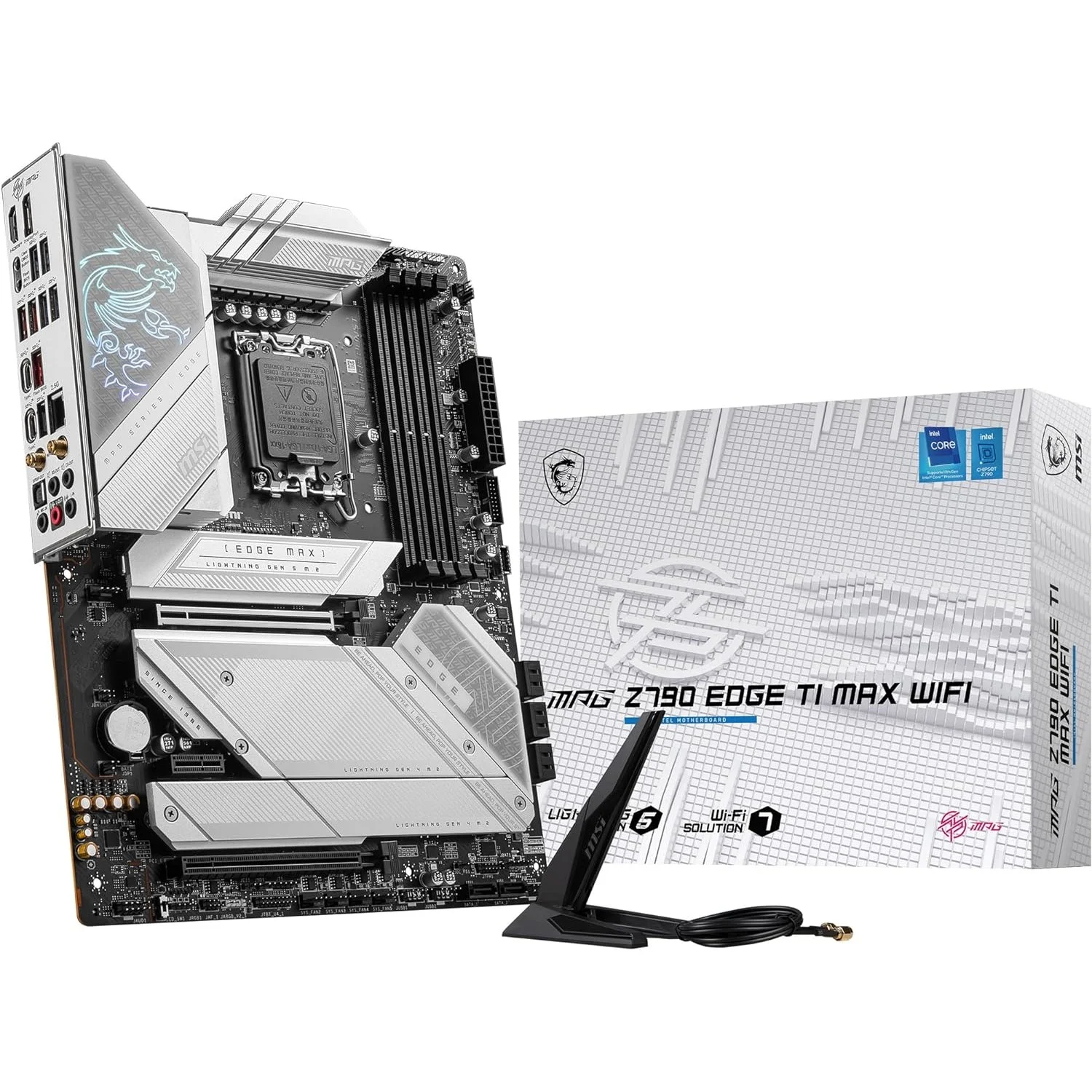

MSI MPG Z790 Edge TI MAX WiFi Gaming Motherboard (Supports 12th/13th Gen Intel Processors, LGA 1700, DDR5, PCIe 5.0, M.2, 2.5Gbps LAN, USB 3.2 Gen2, Wi-Fi 7, ATX)
SKU: 39753180
Rs 94,990
Authorised Dealer
Out of stock
This product is currently sold out.
No worries! Enter your email, and we'll let you know as soon as it's back in stock.
MSI MPG Z790 Edge TI MAX WiFi Gaming Motherboard (Supports 12th/13th Gen Intel Processors, LGA 1700, DDR5, PCIe 5.0, M.2, 2.5Gbps LAN, USB 3.2 Gen2, Wi-Fi 7, ATX)
SKU: 39753180
Rs 94,990
Authorised Dealer
Out of stock
This product is currently sold out.
No worries! Enter your email, and we'll let you know as soon as it's back in stock.
Payment Methods:
Overview
MPG Z790 EDGE TI MAX WIFI is covered with a silver-white color scheme for white PC build lovers to show off different personalities. It is also powerful because it features Wi-Fi 7 solution, an optimized DDR5 circuit, and the latest PCIe 5.0 M.2.
- Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2, USB 3.2 Gen 2×2
- Enhanced Power Design: 16+1+1 Mirrored Power Arrangement, dual 8-pin CPU power connectors, Core Boost, Memory Boost
- Premium Thermal Solution: Enlarged heatsink with heat-pipe, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
- 2.5G LAN and Wi-Fi 7 Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
- High Quality PCB: 6-layer PCB made by server grade level material
- Pre-installed I/O Shield: Better EMI protection and more convenience for installation
Overview
MPG Z790 EDGE TI MAX WIFI is covered with a silver-white color scheme for white PC build lovers to show off different personalities. It is also powerful because it features Wi-Fi 7 solution, an optimized DDR5 circuit, and the latest PCIe 5.0 M.2.
- Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2, USB 3.2 Gen 2×2
- Enhanced Power Design: 16+1+1 Mirrored Power Arrangement, dual 8-pin CPU power connectors, Core Boost, Memory Boost
- Premium Thermal Solution: Enlarged heatsink with heat-pipe, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
- 2.5G LAN and Wi-Fi 7 Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
- High Quality PCB: 6-layer PCB made by server grade level material
- Pre-installed I/O Shield: Better EMI protection and more convenience for installation
Chipset and CPU Support
- Chipset: Intel Z790
- CPU Support: Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors
- Socket: LGA 1700
Memory
- Slots: 4x DDR5 UDIMM
- Maximum Memory Capacity: 256GB
- Supported Memory Speeds:
- Overclocking (OC): 7800+, 7600, 7400, 7200, 7000, 6800, 6600, 6400, 6200, 6000, 5800 MHz
- JEDEC Standard: 5600, 5400, 5200, 5000, 4800 MHz
- Max. Overclocking Frequency:
- 1DPC 1R: Up to 7800+ MHz
- 1DPC 2R: Up to 6600+ MHz
- 2DPC 1R: Up to 6400+ MHz
- 2DPC 2R: Up to 5600+ MHz
- Features:
- Supports Intel® XMP 3.0 OC
- Dual-Controller Dual-Channel mode
- Non-ECC, un-buffered memory
Audio
- Codec: Realtek® ALC4080
- Channels: 7.1-Channel USB High-Performance Audio
- Playback Support: Up to 32-Bit/384 kHz on the front panel
Storage
- M.2 Slots:
- M.2_1 (From CPU): PCIe 5.0 x4, supports 22110/2280/2260 devices
- M.2_2 (From Chipset): PCIe 4.0 x4, supports 2280/2260 devices
- M.2_3 (From Chipset): PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
- M.2_4 (From Chipset): PCIe 4.0 x4, supports 2280/2260/2242 devices
- M.2_5 (From Chipset): PCIe 4.0 x4, supports 2280/2260 devices
- SATA Ports: 8x SATA 6G
- Note: PCI_E1 slot will be Gen5x8 when installing M.2 SSD in the M2_1 slot.
- SATA_1 & SATA_2 will be unavailable when installing M.2 SATA SSD in the M2_3 slot.
LAN
- LAN Chipset: Intel®
- Speed: 2.5Gbps
Onboard Graphics
- Ports:
- 1x HDMI™ (2.1, maximum resolution of 4K 60Hz)
- 1x DisplayPort (1.4, maximum resolution of 8K 60Hz)
- Note: Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Expansion Slots
- PCI-E Slots:
- 2x PCI-E x16
- 1x PCI-E x1
- PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
- PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
- PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
RAID
- Supported RAID Levels:
- SATA: RAID 0, RAID 1, RAID 5, RAID 10
- M.2 NVMe: RAID 0, RAID 1, RAID 5, RAID 10
- Note: SATA_A1~A2 do not support RAID function.
USB
- Rear Ports:
- 4x USB 5Gbps Type A
- 4x USB 10Gbps Type A
- 1x USB 10Gbps Type C
- 1x USB 20Gbps Type C
- Front Ports:
- 4x USB 2.0
- 2x USB 5Gbps Type A
- 1x USB 10Gbps Type C
Wireless LAN & Bluetooth
- Wi-Fi: Wi-Fi 7 Solution
- Pre-installed in the M.2 (Key-E) slot
- Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps
- Supports 802.11 a/ b/ g/ n/ ac/ ax
- Bluetooth: 5.4**, MLO, 4KQAM
- *6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 SV3.
- **The Bluetooth version may be updated. Refer to the Wi-Fi chipset vendor's website for details. Bluetooth 5.4 support schedule depends on MSFT Windows 11 plan.
Internal I/O
- Power Connectors:
- 1x ATX_PWR
- 2x CPU_PWR
- Fans:
- 1x CPU Fan
- 1x Pump Fan
- 6x System Fan
- Other Connectors:
- 2x Front Panel (JFP)
- 1x Chassis Intrusion (JCI)
- 1x Front Audio (JAUD)
- 1x TBT Connector (JTBT, supports RTD3)
- 1x Tuning Controller Connector (JDASH)
- 3x Addressable V2 RGB LED Connector (JARGB_V2)
- 1x RGB LED Connector (JRGB)
- 1x TPM Pin Header (Support TPM 2.0)
- 1x ARGB+FAN Header (JAF_1)
- 1x USB4 Card Connector (JTBT_U4_1, supports RTD3)
- 4x USB 2.0 Ports
- 2x USB 5Gbps Type A Ports
- 1x USB 10Gbps Type C Port
