MSI PRO B760M-P DDR5 LGA 1700 Micro-ATX Motherboard
SKU: 39577734
Rs 37,490
Authorised Dealer
Out of stock
This product is currently sold out.
No worries! Enter your email, and we'll let you know as soon as it's back in stock.
Payment Methods:
Overview

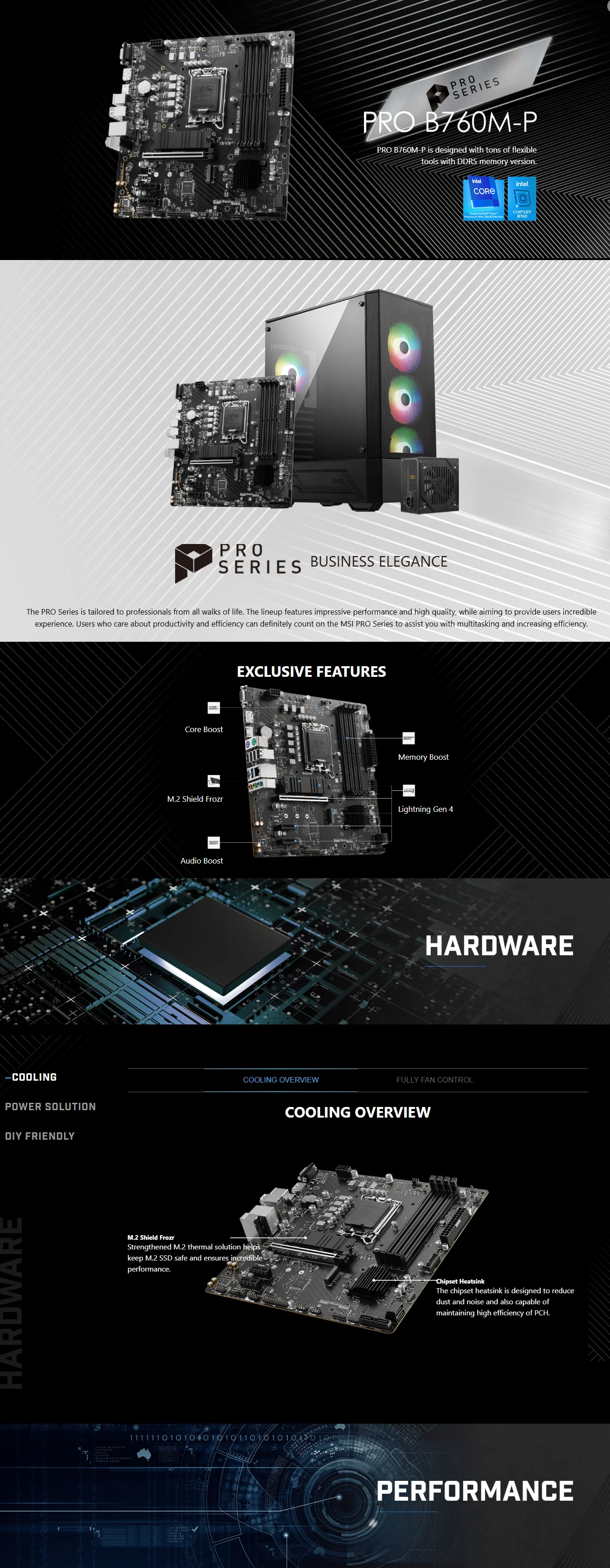

The MSI PRO B760M-P is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.
- Supports 12th/13th Gen Intel CPU
- 4x DIMMs, DDR5 6800+MHz (OC)
- Lightning Gen4 x4 M.2
- Advanced Technology Memory Boost
Overview
The MSI PRO B760M-P is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.
- Supports 12th/13th Gen Intel CPU
- 4x DIMMs, DDR5 6800+MHz (OC)
- Lightning Gen4 x4 M.2
- Advanced Technology Memory Boost
Chipset and CPU Support
- Chipset: Intel B760
- CPU Support: Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors
- Socket: LGA 1700
Memory
- Slots: 4x DDR5
- Maximum Memory Capacity: 256GB
- Supported Memory Speeds:
- Overclocking (OC): 6800+, 6600, 6400, 6200, 6000, 5800 MHz
- JEDEC Standard: 5600, 5400, 5200, 5000, 4800 MHz
- Max. Overclocking Frequency:
- 1DPC 1R: Up to 6800+ MHz
- 1DPC 2R: Up to 6400+ MHz
- 2DPC 1R: Up to 6000+ MHz
- 2DPC 2R: Up to 5600+ MHz
- Features:
- Supports Intel® XMP 3.0 OC
- Dual-Controller Dual-Channel mode
- Non-ECC, un-buffered memory
Audio
- Codec: Realtek® ALC897
- Channels: 7.1-Channel High Definition Audio
Storage
- M.2 Slots:
- M.2_1 (From CPU): PCIe 4.0 x4, supports 2280/2260/2242 devices
- M.2_2 (From Chipset): PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
- SATA Ports: 4x SATA 6G
- Note: SATA5 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
LAN
- LAN Chipset: Realtek® RTL8111H
- Speed: Gigabit LAN
Onboard Graphics
- Ports:
- 1x HDMI™ (1.4, maximum resolution of 4K 30Hz)
- 1x DisplayPort (1.4, maximum resolution of 4K 60Hz)
- 1x VGA (maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz)
- Note: Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Expansion Slots
- PCI-E Slots:
- 1x PCI-E x16 (Gen PCIe 4.0, from CPU)
- 2x PCI-E x1 (Gen PCIe 4.0, from Chipset)
RAID
- Supported RAID Levels: RAID 0, RAID 1, RAID 5, RAID 10 for SATA storage devices
USB
- Rear Ports:
- 4x USB 2.0
- 1x USB 5Gbps Type A
- 1x USB 10Gbps Type C
- Front Ports:
- 4x USB 2.0
- 2x USB 5Gbps Type A
Internal I/O
- Power Connectors:
- 1x ATX_PWR
- 1x CPU_PWR
- Fans:
- 1x CPU Fan
- 2x System Fan
- Other Connectors:
- 2x Front Panel (JFP)
- 1x Chassis Intrusion (JCI)
- 1x Front Audio (JAUD)
- 1x Printer Port (JLPT)
- 1x Com Port (JCOM)
- 1x RGB LED Connector (JRGB)
- 1x TPM Pin Header (Support TPM 2.0)
- 4x USB 2.0 Ports
- 2x USB 5Gbps Type A Ports
