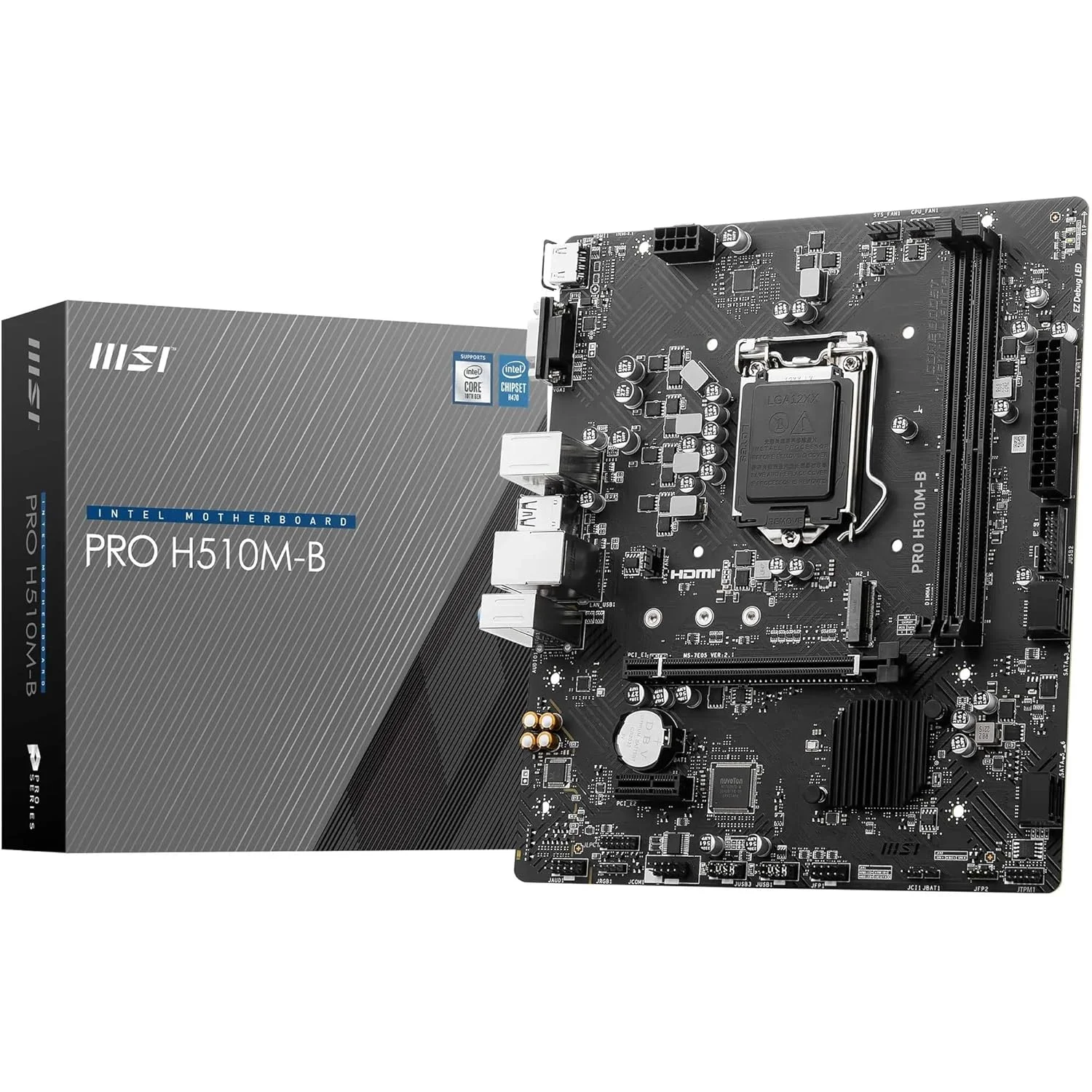

MSI PRO H510M-B DDR4 Micro-ATX Motherboard
SKU: 39123791
Rs 22,490
Authorised Dealer
Out of stock
This product is currently sold out.
No worries! Enter your email, and we'll let you know as soon as it's back in stock.
MSI PRO H510M-B DDR4 Micro-ATX Motherboard
SKU: 39123791
Rs 22,490
Authorised Dealer
Out of stock
This product is currently sold out.
No worries! Enter your email, and we'll let you know as soon as it's back in stock.
Payment Methods:
Overview
The MSI Pro H510M-B supports DDR4 memory with maximum speeds up to 2933MHz. It is compatible with 10th Gen Intel Core, Pentium Gold, and Celeron processors designed for the LGA 1200 socket. Additionally, this motherboard features 4 SATA 6Gb/s ports and 1 M.2 slot that supports PCIe 3.0 x4/SATA modes.
- 10TH GEN CORE READY – The PRO H510M-B is a compact micro-ATX motherboard outfitted with the latest Intel H510 chipset (LGA 1200, 10th Gen Core ready); The VRM features MSI Core Boost technology for improved stability & peformance
- GEN4 GPU SLOT, DUAL DIMMS – A PCIe 3.0 x16 slot supports state-of-the-art graphics cards; Dual DIMM’s with dual-channel DDR4 architecture support up to 64 GB of SDRAM (2933MHz)
- SATA STORAGE – The SATA 6Gb/s slot is designed to maximize SATA SSD performance; SSD storage reduces loading time
- PASSIVE & AI COOLING – A chipset heatsink provides passive cooling; a PCB base with thickened copper helps dissipate heat
- GET CONNECTED – Features Realtek RTL8111H Gigabit LAN; Fixed ports include legacy VGA as well as HDMI 1.4 (4K/30Hz) – requires CPU with integrated graphics; 2 x USB 3.2 Gen 1 Type-A (5Gb/s) and 7.1 HD Audio with Audio Boost
Overview
The MSI Pro H510M-B supports DDR4 memory with maximum speeds up to 2933MHz. It is compatible with 10th Gen Intel Core, Pentium Gold, and Celeron processors designed for the LGA 1200 socket. Additionally, this motherboard features 4 SATA 6Gb/s ports and 1 M.2 slot that supports PCIe 3.0 x4/SATA modes.
- 10TH GEN CORE READY – The PRO H510M-B is a compact micro-ATX motherboard outfitted with the latest Intel H510 chipset (LGA 1200, 10th Gen Core ready); The VRM features MSI Core Boost technology for improved stability & peformance
- GEN4 GPU SLOT, DUAL DIMMS – A PCIe 3.0 x16 slot supports state-of-the-art graphics cards; Dual DIMM’s with dual-channel DDR4 architecture support up to 64 GB of SDRAM (2933MHz)
- SATA STORAGE – The SATA 6Gb/s slot is designed to maximize SATA SSD performance; SSD storage reduces loading time
- PASSIVE & AI COOLING – A chipset heatsink provides passive cooling; a PCB base with thickened copper helps dissipate heat
- GET CONNECTED – Features Realtek RTL8111H Gigabit LAN; Fixed ports include legacy VGA as well as HDMI 1.4 (4K/30Hz) – requires CPU with integrated graphics; 2 x USB 3.2 Gen 1 Type-A (5Gb/s) and 7.1 HD Audio with Audio Boost
Chipset & CPU
- Chipset: Intel H470
- CPU Support:
- 10th Gen Intel Core, Pentium Gold, Celeron (LGA 1200)
Memory
- Slots: 2x DDR4
- Max Capacity: 64GB
- Supported Speeds: 2933/2666/2400/2133 MHz
- Support for:
- 1R 2133/2666/2933 MHz for i9/i7
- 1R 2133/2666 MHz for i5/i3/Pentium/Celeron
- Mode: Dual-channel, non-ECC, unbuffered
- XMP: Supports Intel Extreme Memory Profile
Graphics
- Outputs:
- 1x HDMI (4K @ 30Hz)
- 1x VGA (up to 2048x1536 @ 50Hz)
- Graphics depend on the installed CPU’s integrated graphics.
Expansion Slots
- PCI-E Slots:
- 1x PCI-E x16 (from CPU)
- 1x PCI-E x1 (from chipset)
Audio
- Codec: Realtek ALC897
- Audio Channels: 7.1-Channel HD Audio
Storage
- M.2 Slot: 1x (supports PCIe 3.0 x4/SATA)
- SATA Ports: 4x SATA 6Gb/s
USB Ports
- USB 2.0: 4x rear, 4x front
- USB 3.0 (5Gbps): 2x rear, 2x front
LAN
- Controller: Realtek 8111H Gigabit LAN
Internal I/O
- Various connectors including power, fan headers, front panel, audio, USB ports, and RGB LED.
LED Feature
- Debugging: 4x EZ Debug LED
